CIH10T47NJNC

Samsung 0603 CIH10T 系列多层高频电感器特定电阻率非常低 良好的 Q 特性和高超导射频 可在 100MHz 以上范围使用 应用包括移动通信系统、高频时的噪声抑制和阻抗匹配 ### SMT 0603 电感器（扼流圈）

0603 CIH10T 系列多层高频器

特定电阻率非常低

良好的 Q 特性和高超导射频

可在 100MHz 以上范围使用

应用包括移动通信系统、高频时的噪声抑制和阻抗匹配

得捷:
FIXED IND 47NH 400MA 770MOHM SMD

欧时:
Samsung Electro-Mechanics CIH10T 系列 CIH10T47NJNC 47 nH ±5% 陶瓷 多层贴片式电感器, 0603 1608M封装

艾睿:

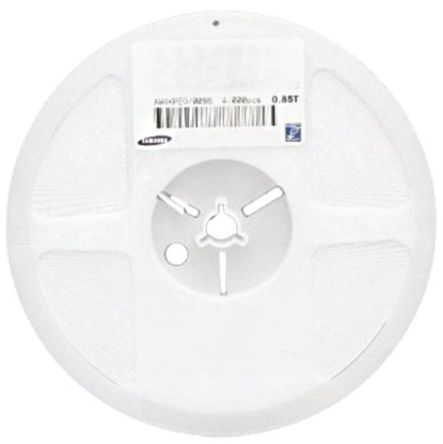

Save valuable space on a PCB with this high frequency chip CIH10T47NJNC surface mount inductor from Samsung Electro-Mechanics. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. It has a tolerance of 5%. This device is made with multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 900M Hz. It has an inductance of 47n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 770m Ohm.

安富利:
Ind High Frequency Chip Multi-Layer 47nH 5% 100MHz 12Q-Factor Ceramic 400mA 0603 Paper T/R

富昌:
CIH Series 47nH 5% 100MHz 300mA 0603 Multi-Layer Inductor

Verical:
Inductor High Frequency Chip Multi-Layer 0.047uH 5% 100MHz 12Q-Factor Ceramic 0.4A 0.77Ohm DCR 0603 T/R

儒卓力:
**CIH10T 47nH 300mA 5% MLT **
