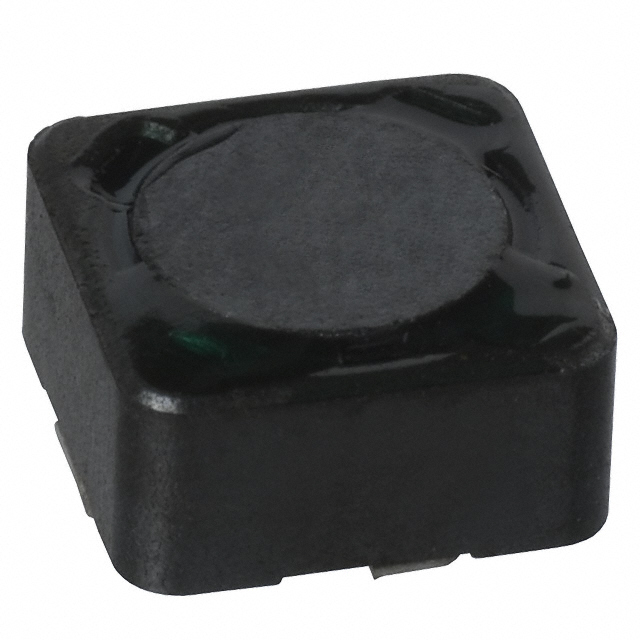

CDRH 系列 15 uH 20 % 容差 1.47 A 屏蔽 表面贴装 功率电感
15µH Shielded Inductor 1.47A 81mOhm Max Nonstandard
得捷:
FIXED IND 15UH 1.47A 81 MOHM SMD
立创商城:
CDRH74NP-150MC-B
艾睿:
Use this power CDRH74NP-150MC-B surface mount inductor from Sumida Corporation to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 100 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 20%. This product is 7.5 mm long, 4.5 mm tall and 7.5 mm deep. Its test frequency is 1K Hz. This device utilizes drum core technology. It has an inductance of 15u H. This SMD inductor has a maximum DC current of 1.47 A with a maximum resistance of 81m Ohm.
Verical:
Inductor Power Shielded Drum Core 15uH 20% 1KHz Ferrite 1.47A 0.081Ohm DCR T/R
儒卓力:
**CDRH74NP 15uH 1470mA 20% **
额定电流 1.47 A
容差 ±20 %
电感 15 µH
产品系列 CDRH74NP
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤81 mΩ
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 0.081 Ω
安装方式 Surface Mount
封装 Non Standard
长度 7.3 mm
宽度 7.3 mm
高度 4.5 mm
封装 Non Standard
重量 0.78 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH74NP-150MC-B Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH74NP-150MC 胜美达 | 功能相似 | CDRH74NP-150MC-B和CDRH74NP-150MC的区别 |
CDRH74-150MC 胜美达 | 功能相似 | CDRH74NP-150MC-B和CDRH74-150MC的区别 |
