Samsung 0402 CIH05T 系列多层高频电感器特定电阻率非常低 良好的 Q 特性和高超导射频 可在 100MHz 以上范围使用 应用包括移动通信系统、高频时的噪声抑制和阻抗匹配 ### 表面安装 0402 电感器(扼流圈)
其他
得捷:
FIXED IND 15NH 300MA 550MOHM SMD
欧时:
Samsung Electro-Mechanics CIHO5T 系列 CIH05T15NJNC 15 nH ±5% 陶瓷 多层贴片式电感器, 0402 1005M封装
艾睿:
This high frequency chip CIH05T15NJNC surface mount inductor from Samsung Electro-Mechanics is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.3G Hz. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 550m Ohm. It has an inductance of 15n H. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has a tolerance of 5%.
安富利:
Ind High Frequency Chip Multi-Layer 15nH 5% 100MHz 8Q-Factor Ceramic 300mA 0402 Paper T/R
富昌:
CIH05 Series 0402 Case Size 15 nH 5% Tolerance Chip Inductor
Verical:
Inductor High Frequency Chip Multi-Layer 15nH 5% 100MHz 8Q-Factor Ceramic 300mA 550mOhm DCR 0402 T/R
儒卓力:
**CIH05T 15nH 300mA 5% MLT **
Win Source:
FIXED IND 15NH 300MA 550 MOHM
额定电流 300 mA
容差 ±5 %
电感 15 nH
自谐频率 2.3 GHz
产品系列 CIH
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤550 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 550 mΩ
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active

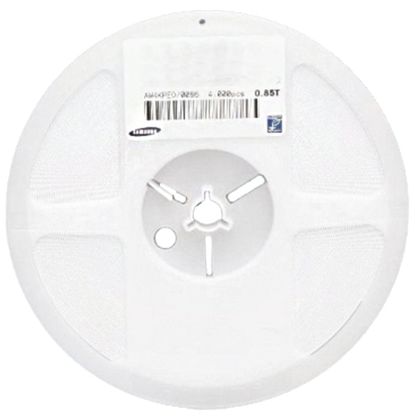

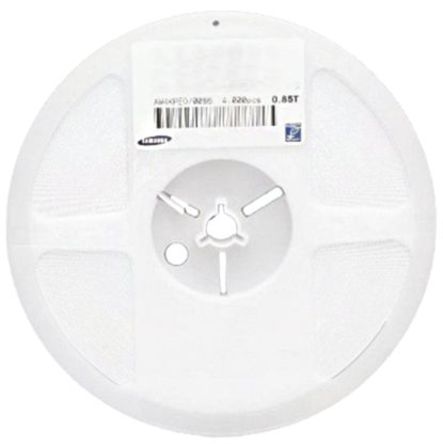

包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CIH05T15NJNC Samsung 三星 | 当前型号 | 当前型号 |
MLG1005S15NJ 东电化 | 功能相似 | CIH05T15NJNC和MLG1005S15NJ的区别 |
MLG1005S15NJT 东电化 | 功能相似 | CIH05T15NJNC和MLG1005S15NJT的区别 |
