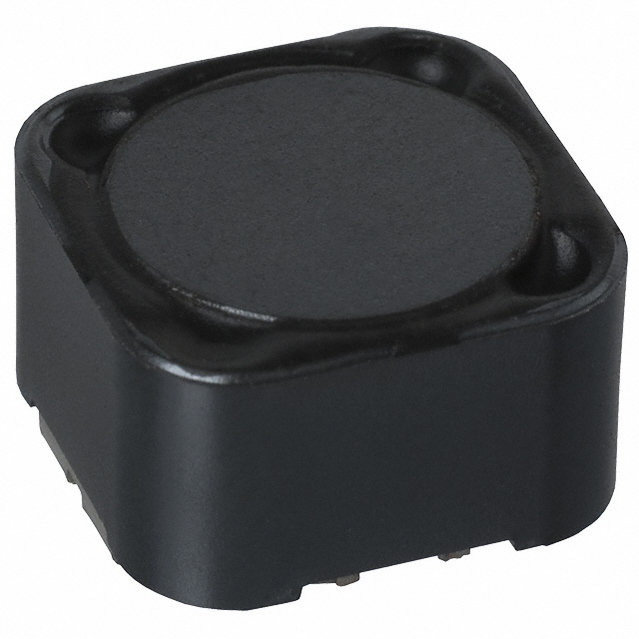

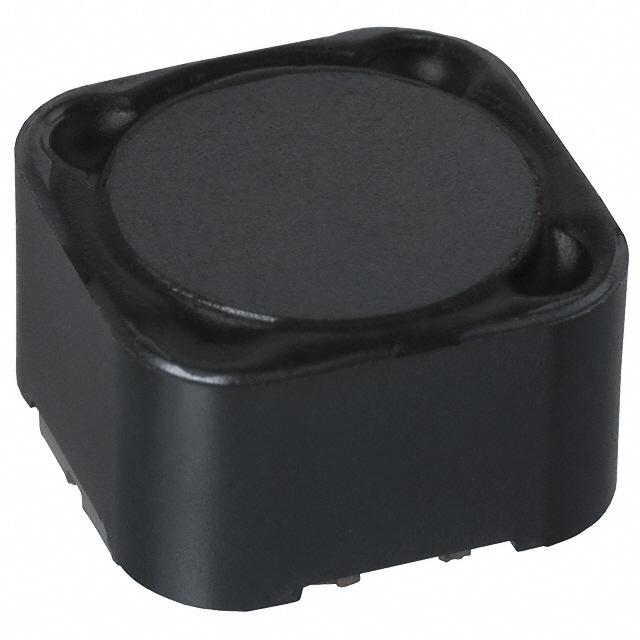

CDRH 系列 47 uH 20 % 容差 3.25 A 屏蔽 表面贴装 功率电感
47 µH 屏蔽 - 器 3.25 A 78 毫欧最大 非标准
得捷:
FIXED IND 47UH 3.25A 78 MOHM SMD
立创商城:
47uH ±20% 3.25A 60mΩ
贸泽:
Fixed Inductors 47uH 3.25A
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power CDRH127/LDNP-470MC surface mount inductor from Sumida Corporation to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 20%. This device is made with drum core technology. This product is 12.3 mm long, 8 mm tall and 12.3 mm deep. This SMD inductor has a maximum DC current of 3.25 A with a maximum resistance of 78m Ohm. Its test frequency is 100K Hz. It has an inductance of 47u H.
安富利:
Ind Power Shielded Wirewound 47uH 20% 1KHz Ferrite 3.25A Carrier T/R
富昌:
CDRH 系列 47 uH 20 % 容差 3.25 A 屏蔽型 表面贴装 功率电感
Chip1Stop:
Inductor Power Shielded Drum Core 47uH 20% 100KHz Ferrite 3.25A 78mOhm DCR Carrier T/R
Verical:
Inductor Power Shielded Drum Core 47uH 20% 1KHz Ferrite 4.1A 0.078Ohm DCR T/R
儒卓力:
**CDRH127 47uH 3250mA 20% WWT **
额定电流 3.25 A
容差 ±20 %
电感 47 µH
产品系列 CDRH127/LDNP
屏蔽 Yes
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤78 mΩ
工作温度Max 100 ℃
工作温度Min 40 ℃
电阻DC Max 78 mΩ
安装方式 Surface Mount

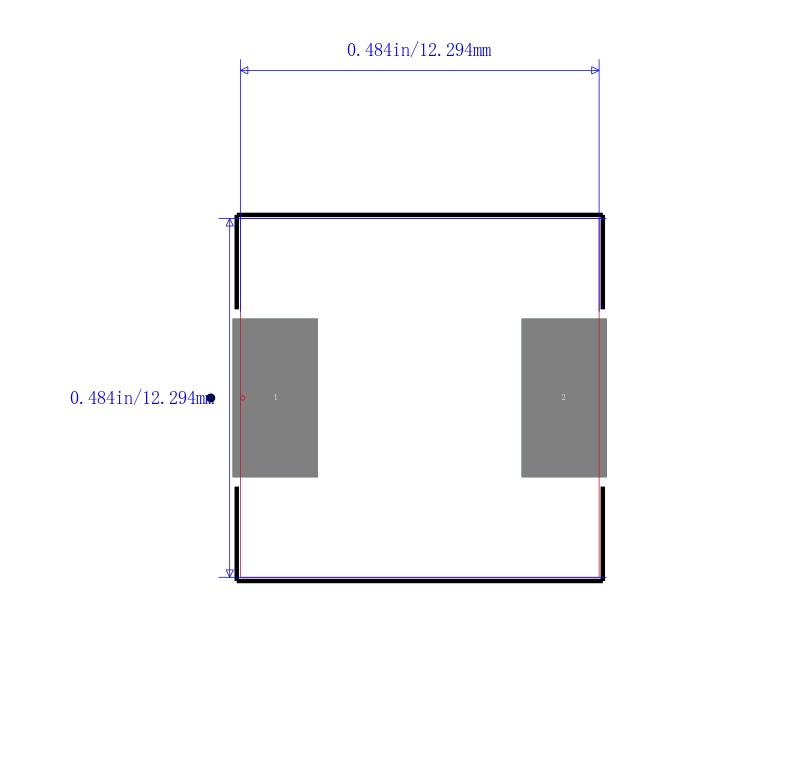

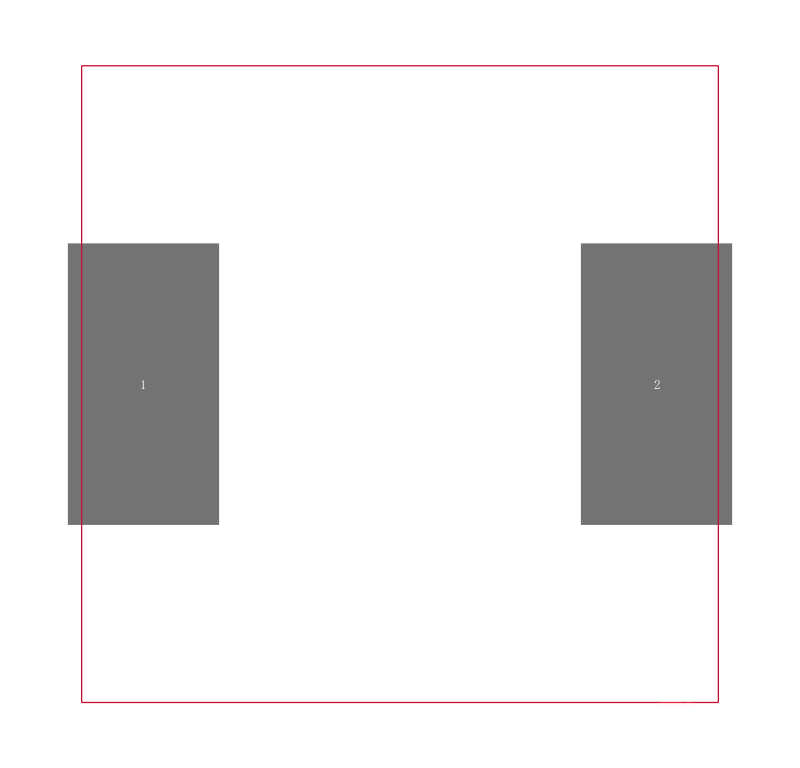

封装 12.3 mm x 12.3 mm
长度 12.3 mm
宽度 12.3 mm
高度 8 mm
封装 12.3 mm x 12.3 mm
重量 3.6 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH127/LDNP-470MC Sumida 胜美达 | 当前型号 | 当前型号 |
PIS4728-470M-04 Fastron Technology | 功能相似 | CDRH127/LDNP-470MC和PIS4728-470M-04的区别 |
