100 W 单组输出 48 V 短路保护 AC/DC 开关电源
**Features:**
* High Efficiency 91%
* Protections: Short Circuit, Overload, Over Voltage, Over Temperature
* Built-In Active PFC Function
* Cooling By Fee Air Convection
* OCP Point Adjustable Through Output Cable or Internal Potential Meter
* IP65/IP67 Design for Indoor or Outdoor Installations
* Compliance to Worldwide Safety Regulations for Lighting
* 3-Year Factory Warranty
得捷:
LED DRVR CC/CV AC/DC 36-48V 2A
艾睿:

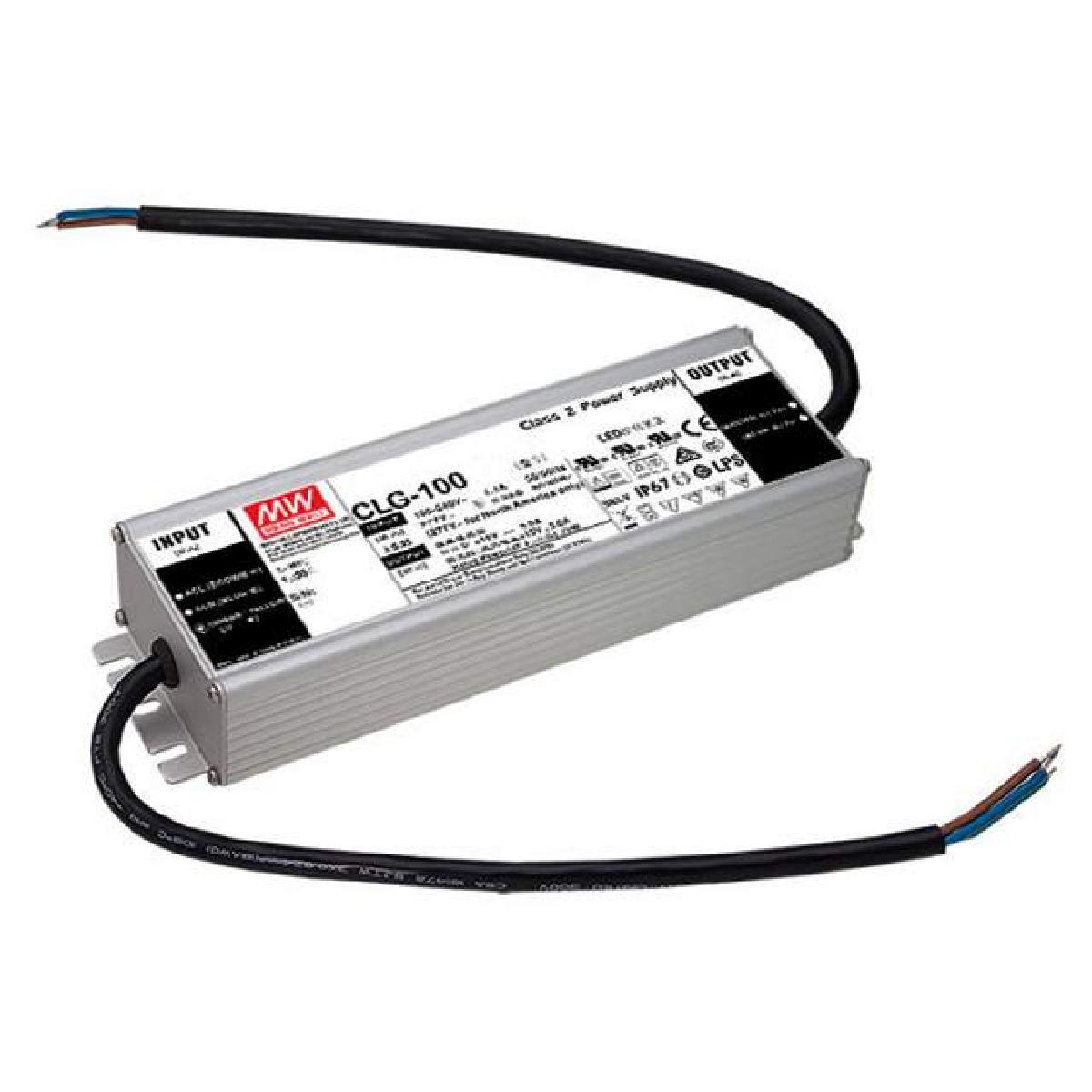

Power your device with direct current by using this CLG-100-48 AC to DC power supply from Mean-Well USA, Inc. to convert an alternating current source to a direct current supply. It has a voltage of 48 V and maximum output power of 96 W. This part&s;s single output can handle a current up to 2 A. This part has a temperature range of -30 °C to 70 °C.
Allied Electronics:
Power Supply; AC-DC; 48V; 2A; 90-295V In; Enclosed; PFC; LED Driver; 96W; CLG-100 Series
Jameco:
AC to DC Power Supply Enclosed LED Single Output 12 to 48 Volt 2 to 5 Amp 60 to 96 Watt
安富利:
LED DRVR Module 1-CH IP67 48V 2A
富昌:
100 W 单组输出 48 V 短路保护 AC/DC 开关电源
Chip1Stop:
AC/DC Power Supply Single-OUT 48V 2A 96W 5-Pin
TME:
Pwr sup.unit: switched-mode; LED; 96W; 48VDC; 40.8÷48VDC; 2A; IP67
MASTER:
AC/DC LED Power Supply - Const Curr/Volt - 96W - Fixed: 48 Vdc @ 2,000mA - Dim: No
Online Components:
AC/DC LED Power Supply 96W Single 5-Pin , Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr/Volt - 96W - Fixed: 48 Vdc @ 2,000mA - Dim: No
电源电压DC 264 V
额定功率 96 W
输出接口数 1
输出电压 48 V
输出电流 2 A
输入电流 1.1 A
输出功率 96 W
隔离电压 3750 kV
输入电压Max 295 VAC
输入电压Min 90 VAC
输出电流Max 2000 mA
输入电流Min 1.1 A
输出功率Max 96 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.417VDC
输入电压 90V ~ 295V
安装方式 Screw
引脚数 5
封装 100
长度 222 mm
宽度 68.0 mm
高度 39.0 mm
封装 100
重量 1 kg
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
