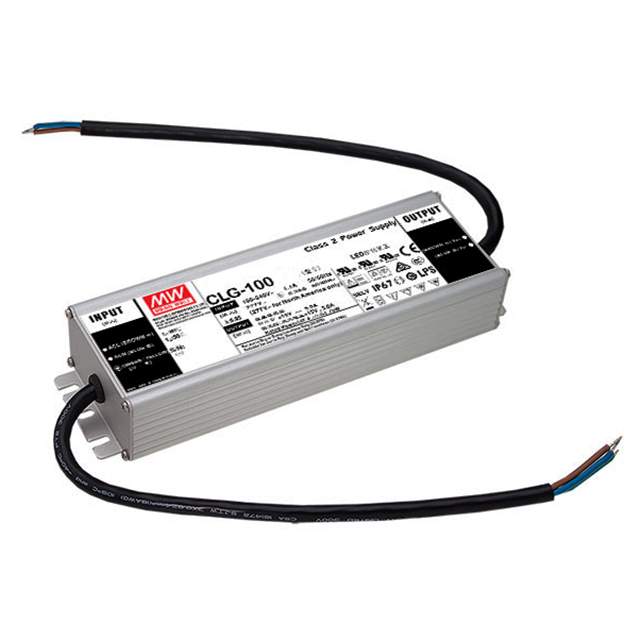

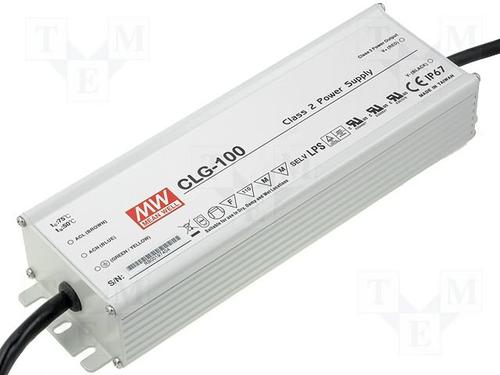

CLG-100-27

100 W 单组输出 27 V 短路保护 AC/DC 开关电源

RS - 100W Waterproof IP67 PFC SMPSU

External, switch mode, encapsulated IP67 rated power supplies

High efficiency, long life and high reliability

Designed for indoor or outdoor installations

Suitable for LED lighting and moving sign applications

Short circuit, over load, over voltage protection

300mm un-terminated, 3-core 18AWG input lead

300mm un-terminated, 2-core 18AWG output lead

UL1310 Class 2, LPS

EMC compliance to EN 55022 Class B

Power factor correction to EN 61000-3-2

### 注

For Industrial Use Only, not in scope of Regulation EC No 125/2009.

Power derates above 50°C.

MTBF to MIL-HDBK-217F.

### 认可

TUV, UL recognised for Canada & US

### 标准

TUV EN 60950-1, EN 61347-1, EN 61347-2-13, UL 1310 Class 2, UL 879, CAN/CSA C22.2 No. 223-M91 except for 48 V
