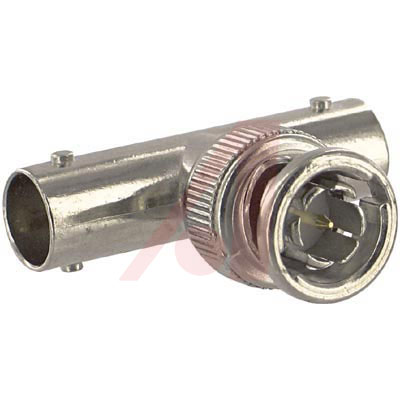

适配器, T型BNC公-母-母, 75Ω
**Materials:** Body — Zinc or brass, nickel plating except where noted; Crimp Sleeve — Nickel-plated brass; Contact — Beryllium copper or phosphor bronze, gold plated; Insulator — Delrin® or TPX polymethylpentene. **Frequency Range:** 50 Ω — 0-4 GHz; 75 Ω — 0-2 GHz. **Working Voltage:** 500 V at sea level. –55°C to +85°C.
欧时:
BNC Tee Adapter Jack/Plug/Jack 75Ohm
e络盟:
适配器, T型BNC公-母-母, 75Ω
Allied Electronics:
connector, rf coaxial, bnc in-series tee adapter, jack to plug to jack, 75 ohm
额定电压 500 V
Angle Tee
Application Commercial
Contact Plating Gold
Finish, Housing Nickel
Impedance 75 Ohms
Material, Contact Brass/Beryllium Copper
Material, Dielectric PMP Polymethylpentene [TPX]
Material, Housing Brass/Zinc
Mating Type Bayonet
Primary Type Adapter
Type BNC Jack-Plug-Jack
Voltage Rating 500 V
RoHS标准 Non-Compliant
