CR2354-1HF

CR2354-1HF图片1
CR2354-1HF图片2

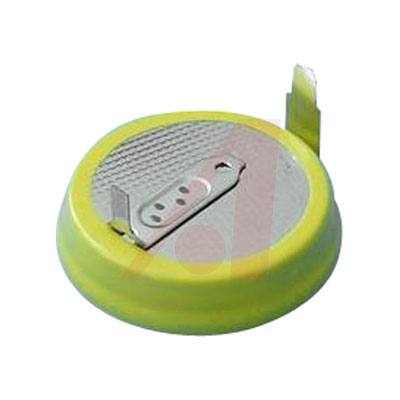

CR2354-1HF图片3
CR2354-1HF概述

氟化碳( BR系列)和二氧化锰( CR系列) Poly-carbonmonofluoride BR Series and Manganese Dioxide CR Series

**LITHIUM - Coin Type** Coin type lithium batteries are high energy, high reliability batteries for a variety of applications. The full 3 volts in these high energy density batteries is about twice that of conventional dry batteries. coin type lithium batteries are available in two types: poly-carbonmonofluoride lithium batteries BR series for uses that require extended reliability and safety, and manganese dioxide lithium batteries CR series for uses that require high voltage and strong load pulse characteristics. The CR Lithium primary coin cells contain Perchlorate over the limit specified by the state legislature of California and are therefore subject to requirements in the California Code of Regulations, title 22, division 4.5: Chapter 33 — Best Management Practices for Perchlorate Materials. **Features**

* High Voltage of 3 Volts — Twice That of Conventional Dry Batteries

* Extremely Small Self-Discharge for Long Service and Shelf Life

* A Wide Operational Temperature Range

* Compact and Lightweight; Extremely High Energy Density Per Unit Weight

* Very Safe Poly-Carbonmonofluoride Lithium

* Extremely Strong Load Pulse Characteristics Manganese Dioxide Lithium

* Operating Temperature Range:

* BR Coin Cells: –30°C to +80°C

* CR Coin Cells: –30°C to +60°C **Applications**

* Calculators

* Cameras

* Compact, Low Power Consuming Cordless Applications

* Electronic Translators

* Electronic Watches Digital and Analog

* Memory Back-Up in All Types of Devices with Tab Terminals

CR2354-1HF中文资料参数规格
技术参数

额定电压 3 V

封装参数

安装方式 Through Hole

外形尺寸

高度 5.40 mm

直径 23.0 mm

物理参数

重量 0.45 lb

工作温度 -30℃ ~ 60℃

其他

产品生命周期 Unknown

符合标准

RoHS标准 Exempt

含铅标准 Lead Free

数据手册

在线购买CR2354-1HF
型号: CR2354-1HF
制造商: Panasonic 松下
描述:氟化碳( BR系列)和二氧化锰( CR系列) Poly-carbonmonofluoride BR Series and Manganese Dioxide CR Series
