TEXAS INSTRUMENTS LP2985IM5-3.3 固定电压稳压器, LDO, 2.5V至16V, 280mV压差, 3.3V输出, 150mA输出, SOT-23-5
The is a fixed output, micropower low noise ultra low dropout LDO regulator in 5 pin SOT-23 package. This regulator is designed for use with very low ESR output capacitors. Using an optimized VIP Vertically Integrated PNP process, the LP2985IM5-3.3 delivers unequalled performance for all battery powered designs. This regulator provides 1% tolerance precision output voltage with only 75µA quiescent current at 1mA load and 850µA at 150mA load. By adding a 10nF bypass capacitor, the output noise can be reduced to 30µVrms in a 30KHz bandwidth. The LP2985IM5-3.3 is designed to work with a ceramic output capacitor with equivalent series resistance ESR as low as 5mohm.
This device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
电源电压DC 16.0V max
额定电流 150 mA
输出接口数 1
输出电压 3.3 V
输出电流 150 mA
供电电流 95µA ~ 2.5mA
针脚数 5
静态电流 65.0 µA
输出电容类型 Ceramic
跌落电压 280 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.5 V
输出电压Min 3.3 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 5

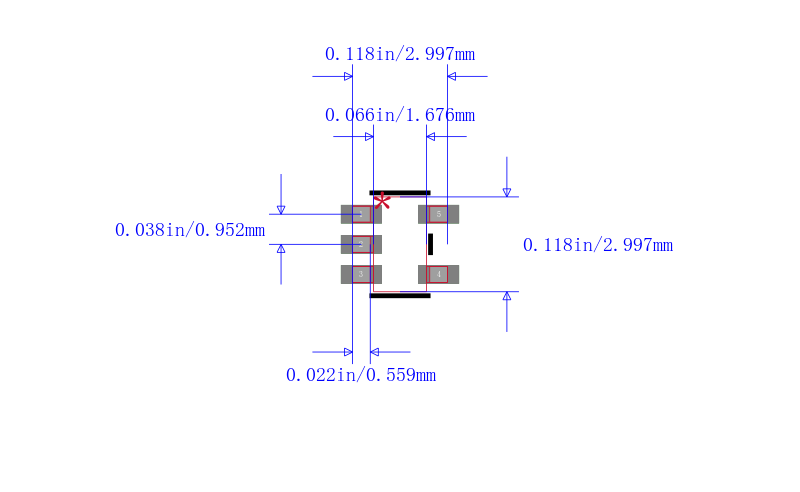

封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 便携式器材, 消费电子产品, 电源管理
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
