D触发器有预置和清除端
Dual D−Type Positive Edge−Triggered Flip−Flop
The MC74AC74/74ACT74 is a dual D−type flip−flop with Asynchronous Clear and Set inputs and complementary Q,Q outputs. Information at the input is transferred to the outputs on the
positive edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive-going pulse. After the Clock Pulse input threshold voltage has been passed, the Data input is locked out and information present will not be transferred to the outputs until the next rising edge of the Clock Pulse input.
Asynchronous Inputs:
LOW input to SDSet sets Q to HIGH level
LOW input to CDClear sets Q to LOW level
Clear and Set are independent of clock
Simultaneous LOW on CDand SDmakes both Q and QHIGH
Features
•Outputs Source/Sink 24 mA
•′ACT74 Has TTL Compatible Inputs
•Pb−Free Packages are Available
电源电压DC 5.50V max
无卤素状态 Halogen Free
输出接口数 1
电路数 2
时钟频率 210 MHz
位数 2
极性 Non-Inverting, Inverting
输入电容 4.5 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14

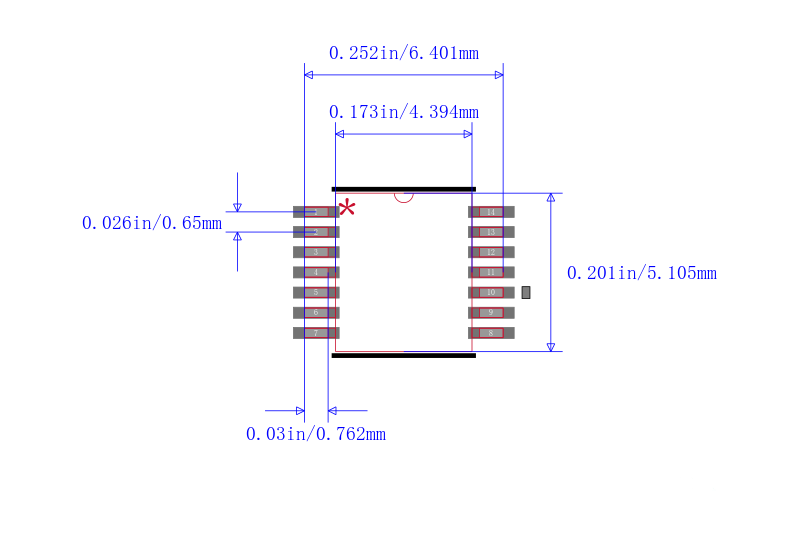

封装 TSSOP-14
长度 5.1 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74ACT74DTR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SN74ACT74DR 德州仪器 | 功能相似 | MC74ACT74DTR2G和SN74ACT74DR的区别 |
MC74ACT74DG 安森美 | 功能相似 | MC74ACT74DTR2G和MC74ACT74DG的区别 |
SN74ACT74D 德州仪器 | 功能相似 | MC74ACT74DTR2G和SN74ACT74D的区别 |
