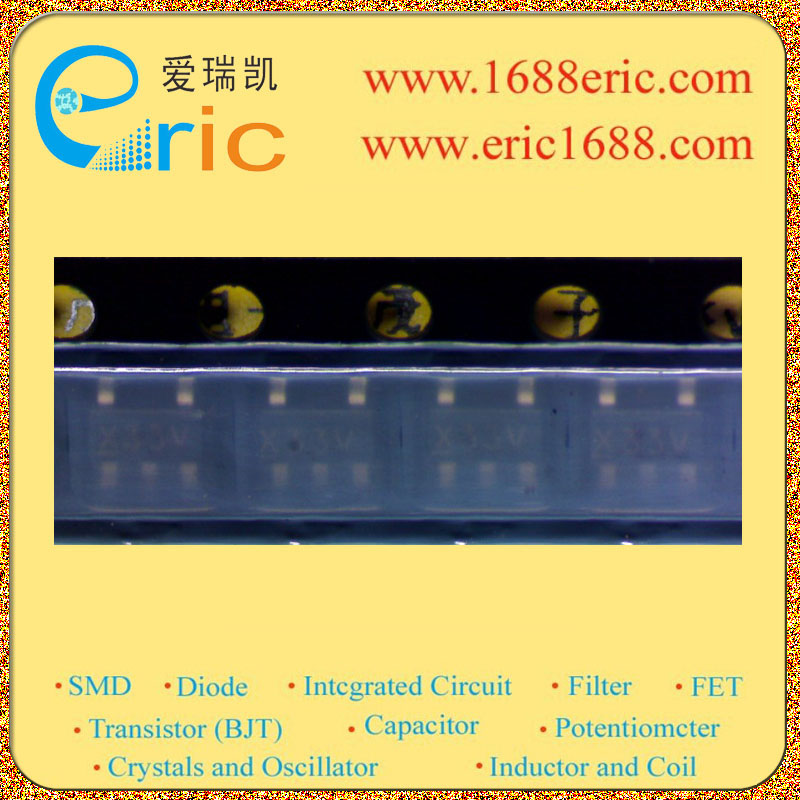

PQ1X331M2ZPH LDO电压调整器/稳压电源IC 3.3V 200mV/0.2V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 X33V 短路保护 过热保护
电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 9V 输出电压VOUTVoltage - Output| 3.3V 输出电流IoCurrent - Output| 150mA/0.15A 最大压降VDOVoltage - Dropout| 200mV/0.2V 带使能脚EN/CEON/OFF功能With Enable Pin| 有 Yes 最大耗散功率PdPower dissipation| 350mW/0.35W Description & Applications| Low Output Current, Compact Surface Mount Type Low Power-Loss Voltage Regulators ;• Compact surface mount package 2.9×1.6×1.1mm •Low power-loss Dropout voltage: TYP. 0.11 V/MAX. 0.26V at IO=60mA Also compatible ceramic capacitors because of suppressing oscillation level •High ripple rejection TYP. 70dB •Built-in ON/OFF control function Dissipation current at OFF-state: MAX. 1μA •Built-in overcurrent and overheat protection functions输出接口数 1
输入电压DC 9.00V max
输出电压 3.3 V
输出电流 150 mA
耗散功率 350 mW
静态电流 0.15 mA
跌落电压 0.2V @150mA
输入电压Max 9 V
输出电流Max 0.15 A
工作温度Max 80 ℃
工作温度Min -30 ℃
耗散功率Max 350 mW
输入电压 ≤9 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -30℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
