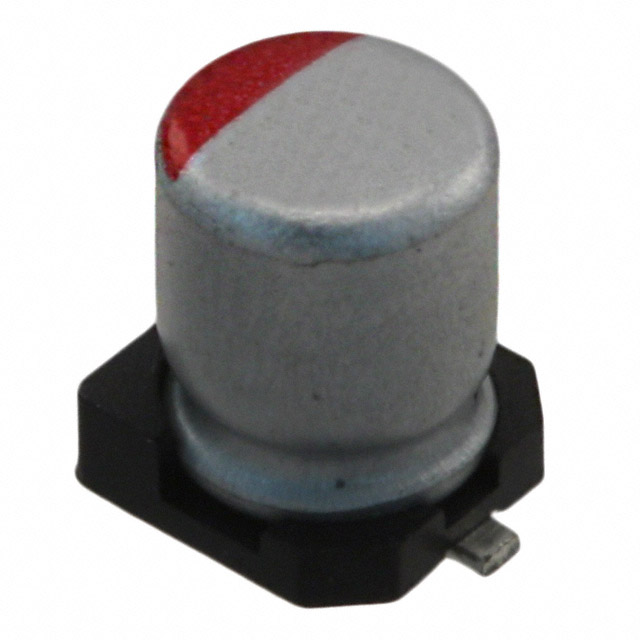

Cap Aluminum Polymer 10uF 10VDC 20% 4 X 5.2mm SMD 0.22Ω 700mA 2000H 105℃ T/R
has the component you need to support changes in input power with their conductive polymer aluminum solid capacitor. It can withstand a voltage of 10 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. Its leakage current is 100@2Min μA. It has a tolerance of 20%. This product is 5.2 mm tall with a diameter of 4 mm.
额定电压DC 10.0 V
电容 10 µF
等效串联电阻ESR 220 mΩ
容差 ±20 %
纹波电流 700 mA
纹波电流高频 70mA @120Hz
纹波电流低频 700mA @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装 SMD
高度 5.2 mm
直径 4.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000 h
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99



| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RFS1A100MCN1GB Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCF1A100MCL1GB 尼吉康 | 类似代替 | RFS1A100MCN1GB和PCF1A100MCL1GB的区别 |
