RL622-680K-RC

径向引线RF扼流圈的DC / DC转换器台式机笔记本 Radial Lead RF Choke DC/DC converters Desktop notebooks

RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A 210mOhm DCR RDL Bag

立创商城:
68uH ±10% 1.2A 210mΩ

得捷:
FIXED IND 68UH 1.2A 210 MOHM TH

艾睿:

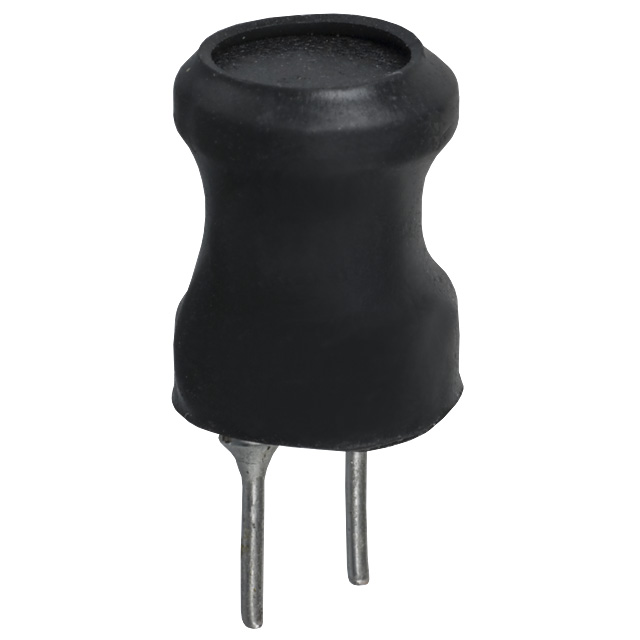

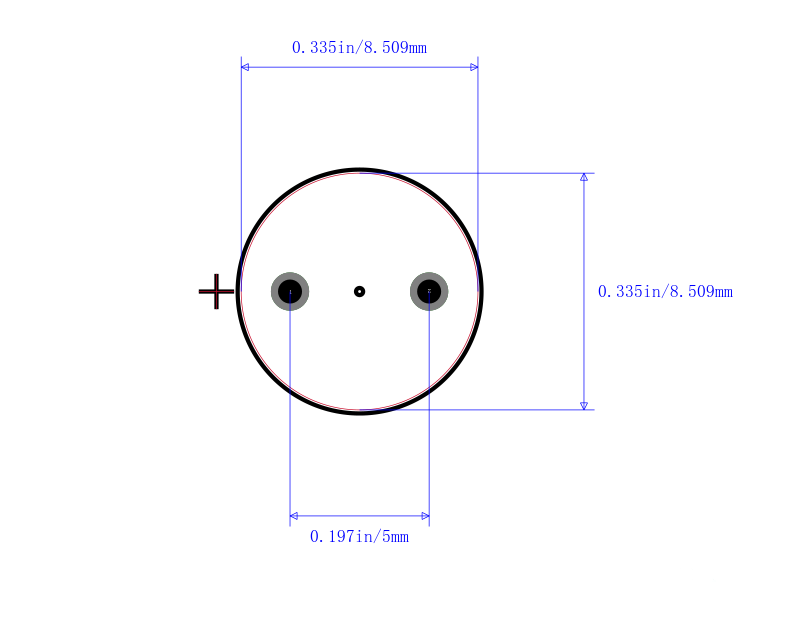

This rf choke RL622-680K-RC leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 4.9MTyp Hz. This leaded inductor has a maximum DC current of 1.2 A with a maximum resistance of 210m Ohm. This product is 11 mm tall with a diameter of 8.5 mm. It has a tolerance of 10%. It has an inductance of 68u H. This device utilizes wirewound technology.

安富利:
Ind RF Choke 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A RDL Bag

Chip1Stop:
Ind RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A RDL Bag

TME:

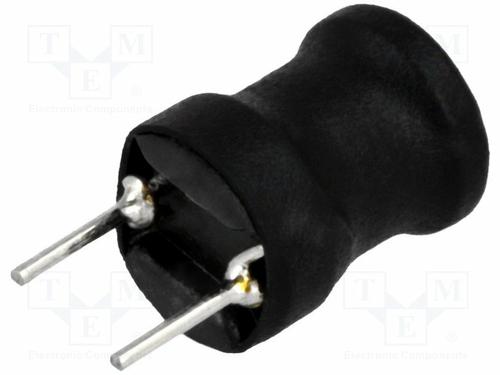

Inductor: wire; THT; 68uH; 1.2A; 210mΩ; ±10%; Body dim: Ø8.5x11mm

Verical:
RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A 0.21Ohm DCR RDL Bag

Newark:
# BOURNS JW MILLER  RL622-680K-RC  RF Choke, Radial Lead, RL622 Series, 68 µH, 1.2 A, 0.21 ohm, ± 10%, 4.9 MHz

MASTER:
RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A 210mOhm DCR RDL Bag

Online Components:
RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A 210mOhm DCR RDL Bag

Electro Sonic:
RF Choke Wirewound 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.2A 210mOhm DCR RDL Bag
