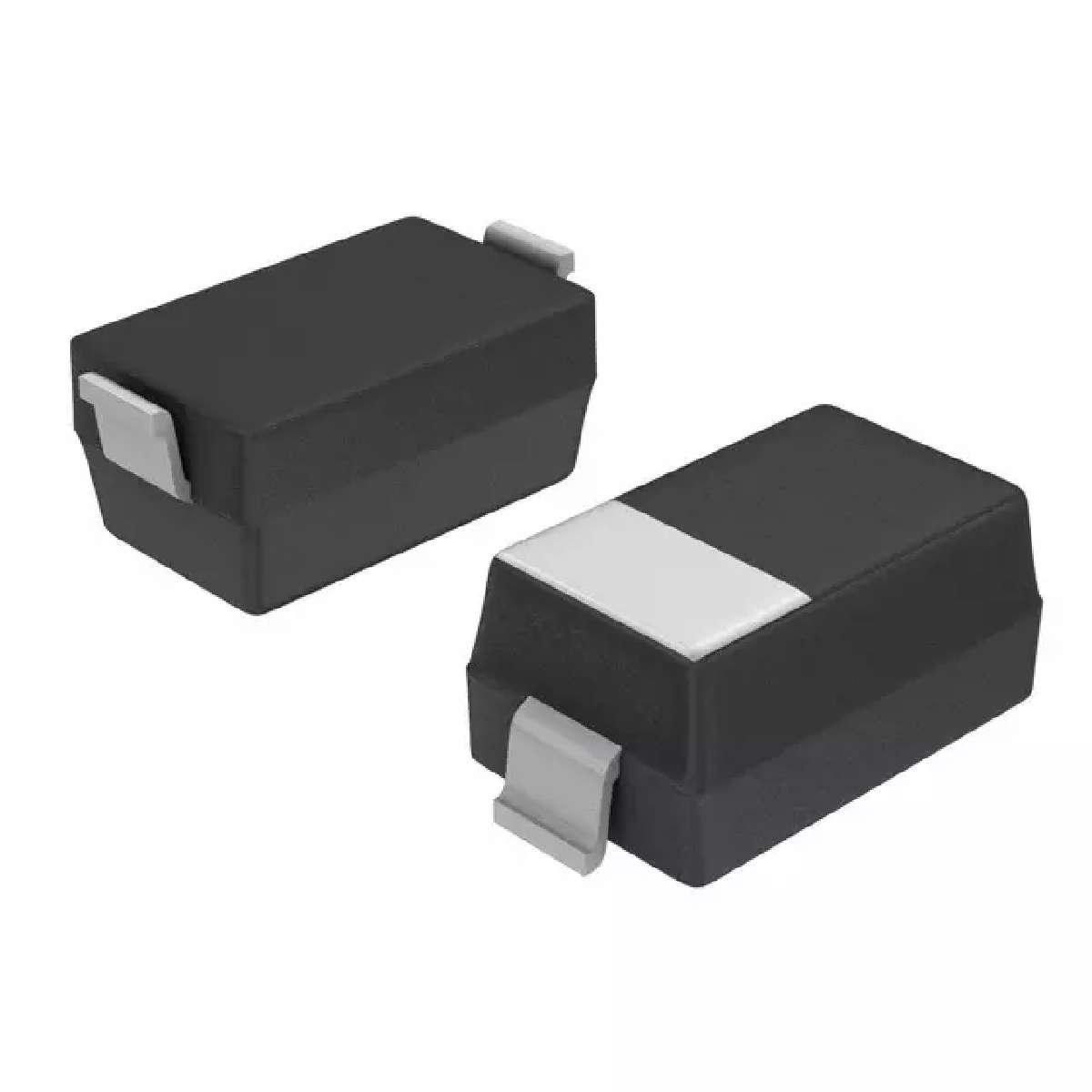

SOD-123 17V 0.5W1/2W
Access the reverse breakdown region using a voltage regulator zener diode from . Its maximum power dissipation is 500 mW. Its test current is 50 mA. Its maximum leakage current is 0.05 μA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 17 V. It is made in a single configuration.
容差 ±5 %
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 50 mA
稳压值 17 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min 55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.69 mm
宽度 1.6 mm
高度 1.17 mm
封装 SOD-123-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SZMMSZ4704T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ4704T1G 安森美 | 类似代替 | SZMMSZ4704T1G和MMSZ4704T1G的区别 |
SZMMSZ5247BT1G 安森美 | 类似代替 | SZMMSZ4704T1G和SZMMSZ5247BT1G的区别 |
MMSZ4704ET1 安森美 | 类似代替 | SZMMSZ4704T1G和MMSZ4704ET1的区别 |
