06035A820KAT2A

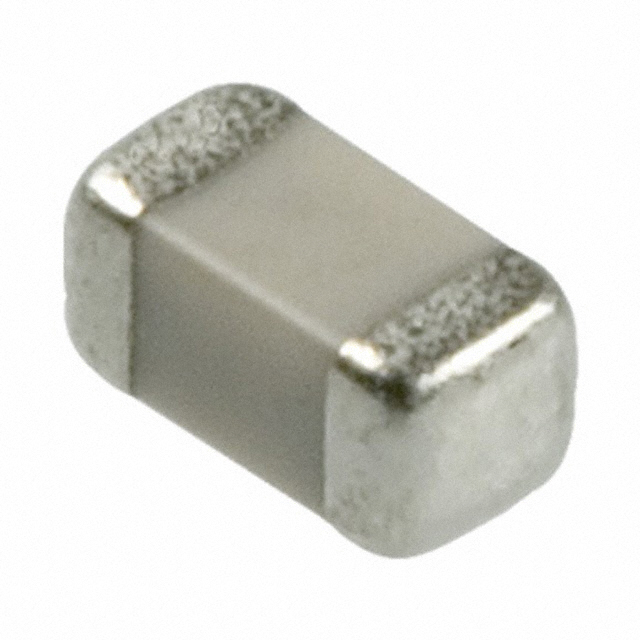

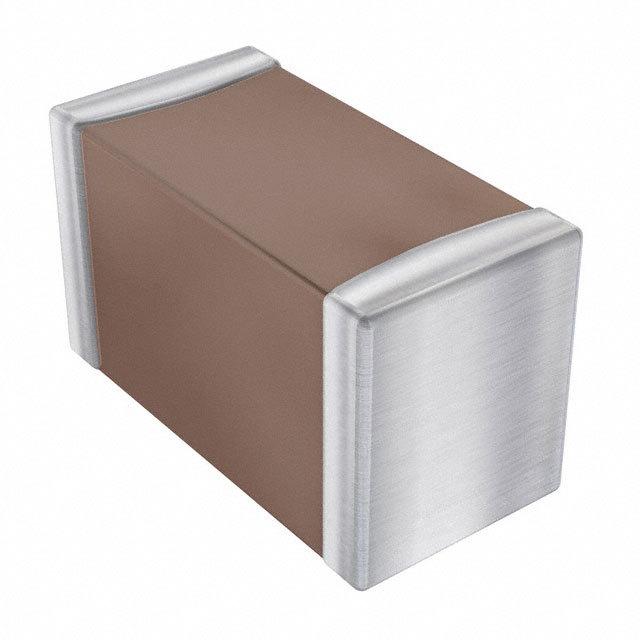

06035A820KAT2A图片1
06035A820KAT2A图片2
06035A820KAT2A图片3
06035A820KAT2A图片4
06035A820KAT2A图片5
06035A820KAT2A图片6
06035A820KAT2A图片7
06035A820KAT2A图片8
06035A820KAT2A图片9
06035A820KAT2A概述

0603 82pF ±10% 50V C0G

82 pF ±10% 50V 陶瓷器 C0G,NP0 0603(1608 公制)


得捷:
CAP CER 82PF 50V C0G/NP0 0603


艾睿:
This 06035A820KAT2A multilayer ceramic capacitor MLCC from AVX consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its capacitance value is 82pF. It has a tolerance of 10%. This product is 1.6 mm long, 0.9Max mm tall and 0.81 mm deep.


Verical:
Cap Ceramic 82pF 50V C0G 10% Pad SMD 0603 125C T/R


Newark:
# AVX  06035A820KAT2A  SMD Multilayer Ceramic Capacitor, 0603 [1608 Metric], 82 pF, 50 V, ± 10%, C0G / NP0


06035A820KAT2A中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 82 pF

容差 ±10 %

电介质特性 C0G/NP0

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.9 mm

封装公制 1608

封装 0603

物理参数

材质 C0G/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

06035A820KAT2A引脚图与封装图

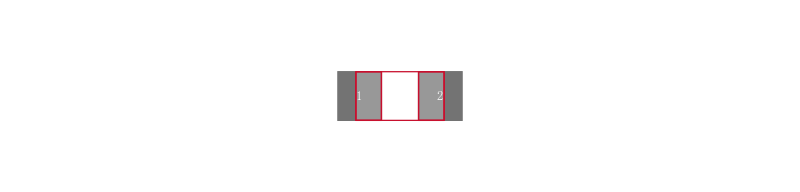

06035A820KAT2A引脚图
06035A820KAT2A封装图
06035A820KAT2A封装焊盘图
在线购买06035A820KAT2A
型号: 06035A820KAT2A
制造商: AVX 艾维克斯
描述:0603 82pF ±10% 50V C0G
替代型号06035A820KAT2A
型号/品牌 代替类型 替代型号对比

06035A820KAT2A

AVX 艾维克斯

当前型号

当前型号

06035A820JAT4A

艾维克斯

类似代替

06035A820KAT2A和06035A820JAT4A的区别
