0BLN030.T参数规格_中文资料_数据手册PDF

0BLN030.T概述

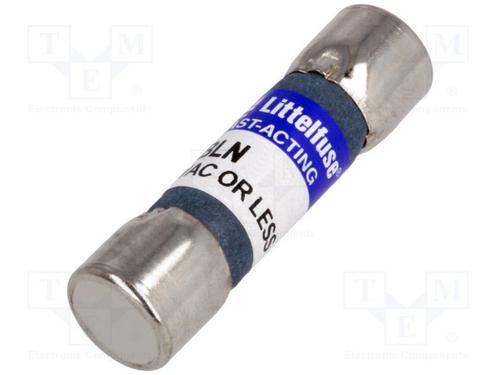

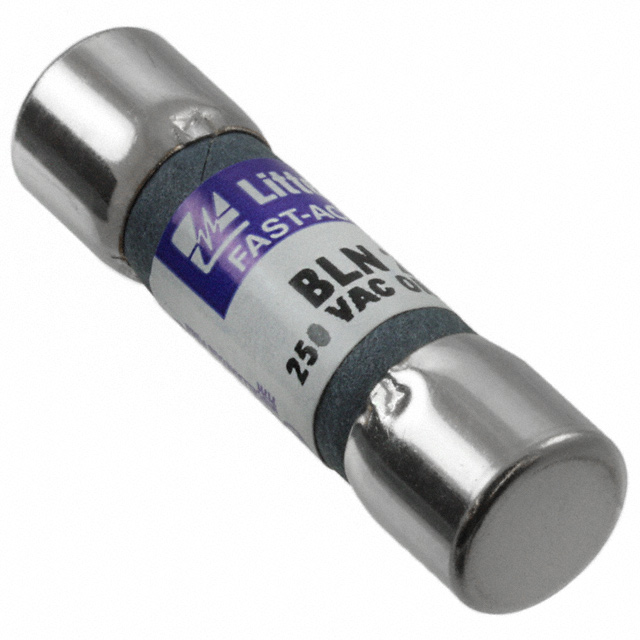

LITTELFUSE 0BLN030.T Fuse, Industrial / Power, BLN Series, 30A, 250VAC, 10.3mm x 38.1mm, 13/32" x 1-1/2"

Be protected by adding a midget fuse developed by . This device has a current rating of 30. It has 2 terminals. The 0BLN030.T fuse has a cartridge termination style. Its fuse is made from fiber. This product is 38.1 mm long with a diameter of 10.31 mm. The maximum AC voltage rating is 250 VAC.

0BLN030.T中文资料参数规格

技术参数

额定电压AC 250 V

额定电流 30 A

电阻 0.0027 Ω

额定电压 250 V

额定电压AC Max 250 V

封装参数

封装 5AG, 10mm x 38.1mm

外形尺寸

长度 38.1 mm

封装 5AG, 10mm x 38.1mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2014/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买0BLN030.T

型号： 0BLN030.T

制造商： Littelfuse 力特

描述：LITTELFUSE 0BLN030.T Fuse, Industrial / Power, BLN Series, 30A, 250VAC, 10.3mm x 38.1mm, 13/32" x 1-1/2"
