0395021004

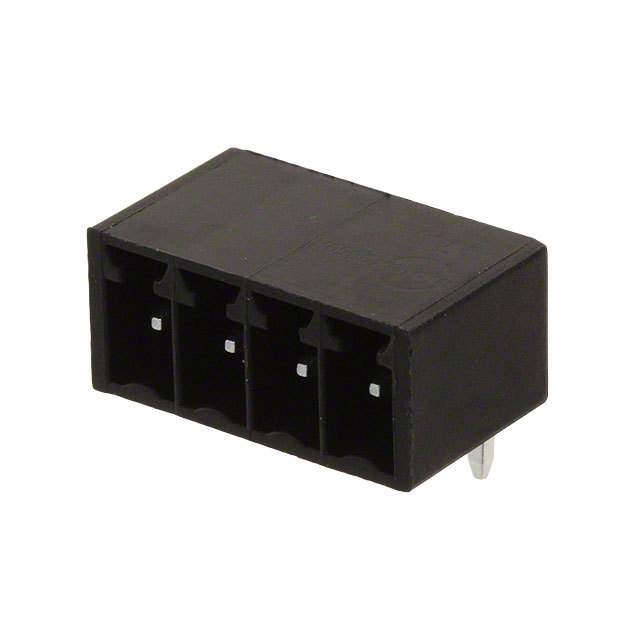

3.50毫米（ 0.138 “ ）间距欧瑞士达™水平PCB插头， 4个电路 3.50mm .138" Pitch Eurostyle™ Horizontal PCB Header, 4 Circuits

4 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.138" 3.50mm 90°, Right Angle Through Hole

得捷:
TERM BLOCK HDR 4POS 90DEG 3.5MM

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this wire to board 0395021004 header connector from Molex on your PCB today! This HDR connector&s;s 4 contacts that are made out of brass and plated with tin. Its pitch is 3.5 mm. This is a 1-row connector. It has a maximum voltage rating of 300 V. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 8 A/contact. This product is 15.39 mm long, 6.9 mm tall and 9.2 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. 0395021004 is housed in black polyamide 6/6.

安富利:
Conn Wire to Board HDR 4 POS 3.5mm Solder RA Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 4 POS 3.5mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 4 POS 3.5mm Solder RA Thru-Hole Eurostyle™
