0740602502

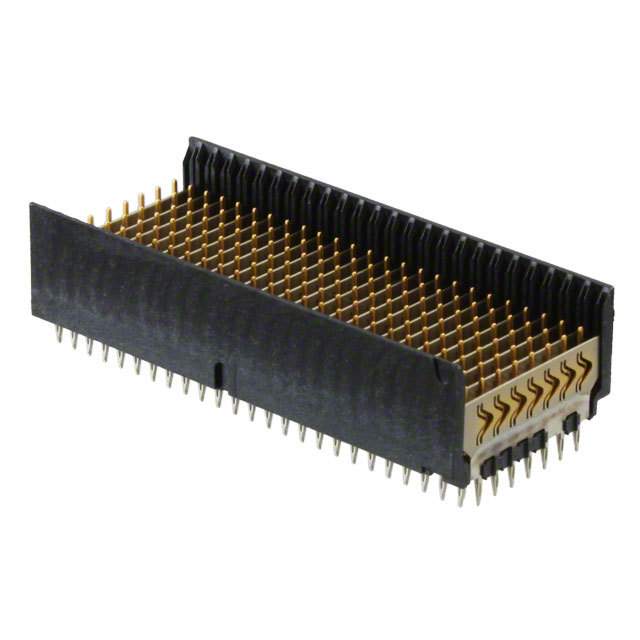

Conn VHDM HDR 200POS 2mm Press Fit ST Thru-Hole VHDM® Tube

Connector Header, Male Pins Through Hole Black VHDM

得捷:
CONN HEADER VHDM 200POS PCB

立创商城:
0740602502

贸泽:
High Speed / Modular Connectors VHDM HDR 8ROW OPEN 6.25MM

艾睿:
Connect two or more printed circuit boards together using vhdm 0740602502 backplane connectors developed by Molex, and create a computer system that meets your requirements. This HDR connector&s;s 200 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2 mm. This is a 8-row connector. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 120 VDC|120VAC. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. 0740602502 is housed in black liquid crystal polymer. This product is 50 mm long, 12.3 mm tall and 21.6 mm deep. This backplane connector has an operating temperature of -55 to 105 °C.

Verical:
Conn VHDM HDR 200 POS 1mm Press Fit ST Thru-Hole VHDM® Tube
