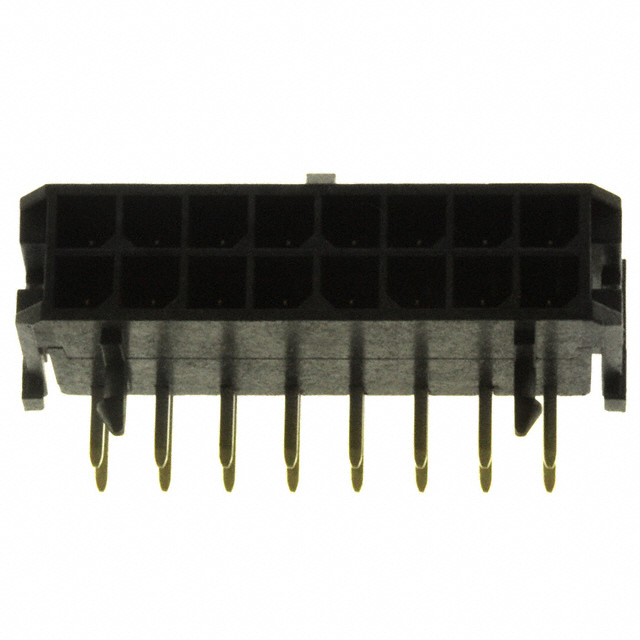

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，以管理单元塑料栓锁电路板，电路16 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 16 Circuits
针座 通孔，直角 16 位置 0.118"（3.00mm）
得捷:
CONN HEADER R/A 16POS 3MM
艾睿:
Use this wire to board 0430451601 connector from Molex when board-to-board interconnects is required. This HDR connector&s;s 16 contacts that are made out of brass alloy and plated with gold over nickel. It has a maximum voltage rating of 600 V. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. 0430451601 is housed in black liquid crystal polymer. This product is 28.15 mm long, 8.77 mm tall and 12.2 mm deep. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.
Chip1Stop:
Conn Wire to Board HDR 16 POS 3mm Solder RA Thru-Hole Tray
Verical:
Conn Wire to Board HDR 16 POS 3mm Solder RA Thru-Hole Micro-Fit 3.0™ Tray
