1SMB28AT3G

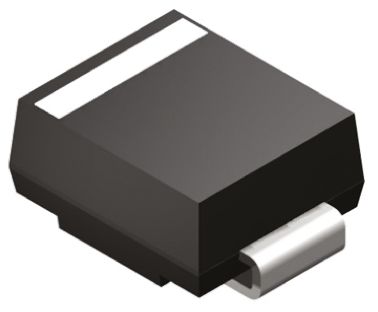

ON SEMICONDUCTOR  1SMB28AT3G  TVS二极管, AEC-Q104, AEC-Q101 1SMB系列, 单向, 28 V, 45.4 V, DO-214AA, 2 引脚

The 1SMB series unidirectional Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.

.

5 to 170V Working peak reverse voltage range

.

6.7 to 199V Standard Zener breakdown voltage range

.

600W @ 1ms Peak power

.

ESD rating of Class 3 >16kV per human body model

.

<1ns Response time

.

<5µA above 10V Low leakage current

.

Maximum clamp voltage @ peak pulse current

.

-65 to 150°C Operating temperature range
