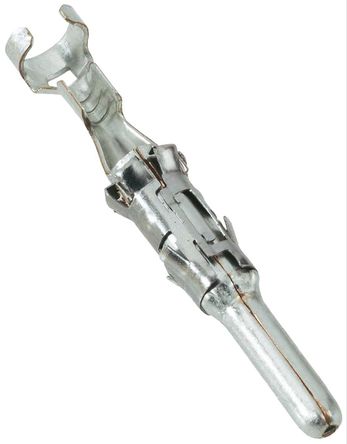

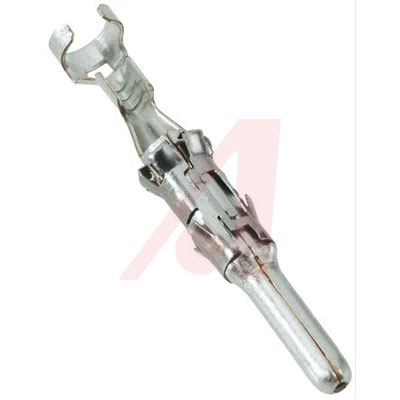

1703013-1

AMP DIN 72585基于 DIN 72585，这系列的密封连接器设计为满足卓越性能的需求。防震 抗物理震动 宽温度范围 单线密封系统 触点兼容性 --- 插头/插座 | 触点 7 路 | 1.5mm 2 到 4 路 | 2.5mm 技术规格 --- 外壳材料 | 玻璃填充 PBT 额定电流 |   1.5mm | 25A 2.5mm | 30A 触点电阻 | 10mΩ IP 额定值 | IP67 和 IP69K 温度范围 | -40 到 +130°C

触点

单件成形构造

镀锡

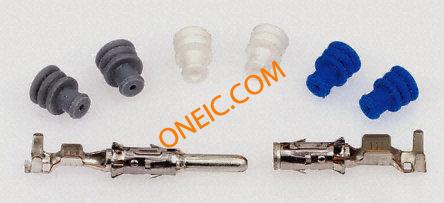

电线封条与触点单独压接

### AMP DIN 72585

基于 DIN 72585，这系列的密封设计为满足卓越性能的需求。

防震

抗物理震动

宽温度范围

单线密封系统

欧时:
TE Connectivity 1.5 mm System 系列 压接端接 公 圆形 连接器 触芯 1703013-1

得捷:
CONTACT PIN 18-20AWG CRIMP TIN

立创商城:
1703013-1 非整盘发货是100一截

e络盟:
触芯, 1.5mm System系列, 公, 压接, 17 AWG, 镀锡触芯, 1.5mm系统系列连接器

艾睿:
Make the perfect wired connection with this 1703013-1 connector contact from TE Connectivity, a simple and effective form of connection binding. It has a straight body orientation. This has a Connector Circular connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its wire is 17-20 AWG. This product is 29.8 mm long, 4.8 mm tall and 4.8 mm deep. It uses the crimp termination method.

Allied Electronics:
Male Crimp Contact for use with 1.5 & 2.5 & 4 mm Pin Diameter Connector Systems

Chip1Stop:
Contact PIN Crimp ST Cable Mount Automotive T/R

TME:
Contact; male; 0.5÷1mm2; 1.5mm System; tinned; crimped; tape

Verical:
Contact PIN Crimp ST Cable Mount 17-20AWG T/R Automotive

Newark:
# AMP - TE CONNECTIVITY  1703013-1  Contact, 1.5mm System Series, Pin, Crimp, 17 AWG, Tin Plated Contacts

MASTER:
DIA. 1.5mm PIN CONTACT, SINGLE WIRE SEALING DIA 1.5mm Stiftkontakt, Einzeldichtunssystem

Powell:
1.5/2.5/4.0mm Pin Diameter Connector System

Online Components:
DIA 1.5MM CONTACT PIN,ASSY

Electro Sonic:
DIA 1.5MM CONTACT PIN,ASSY
