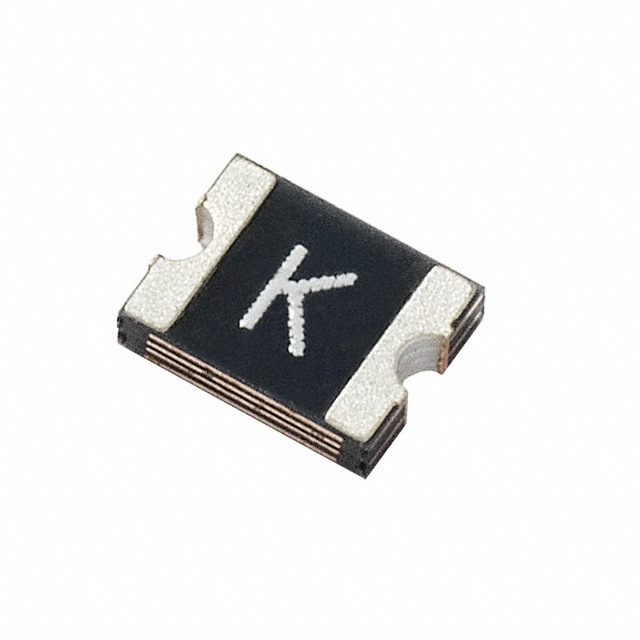

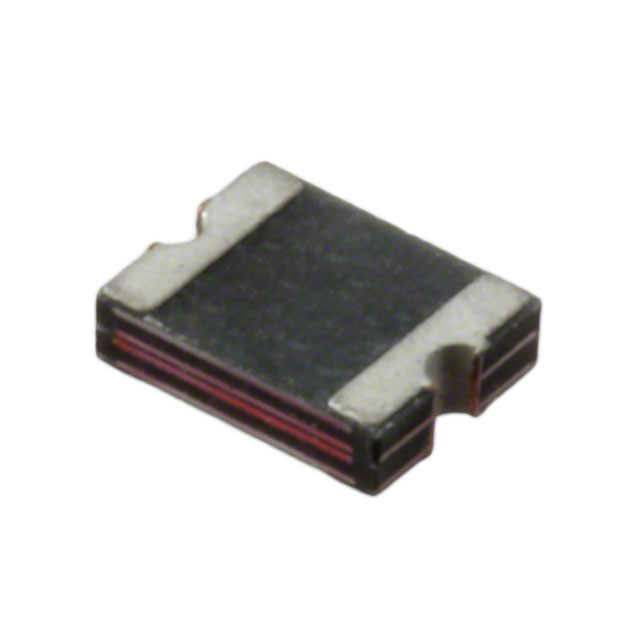

保险丝, 自复式 PTC, 16VDC, 1.1A, SMD
An automatically resetting fuse like this PTC resettable fuse from is ideal for quickly restoring protected equipment into operation after a fuse burns out. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.43Max mm long, 1.25Max mm tall and 2.8Max mm deep.
跳闸时间 100 ms
额定电流 100 A
耗散功率 0.6 W
电阻 0.06 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 100 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.43 mm
宽度 2.8 mm
高度 1.25 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
