1NT1-1A

1NT1-1A图片1
1NT1-1A图片2
1NT1-1A图片3
1NT1-1A图片4
1NT1-1A概述

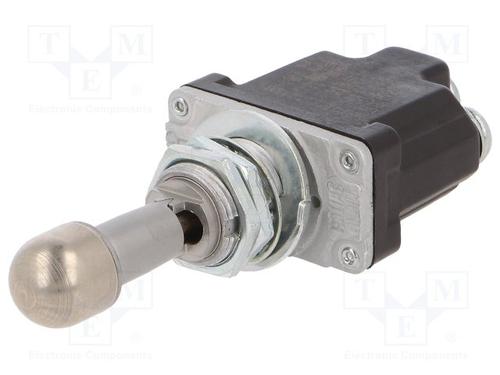

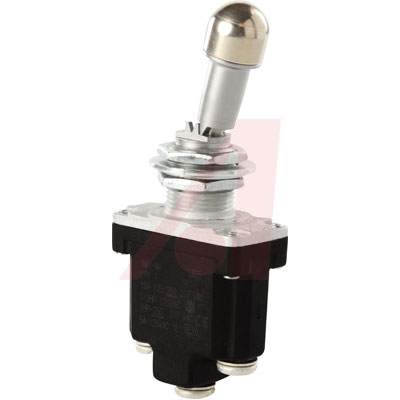

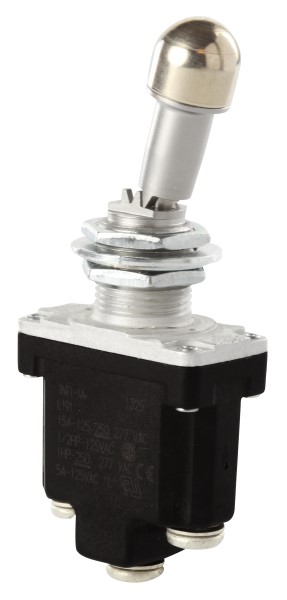

拨动开关 TOGGLE SW 1POLE 3POS SCRW TERM LOCK LVR

"s 61/62 NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

1NT1-1A中文资料参数规格
技术参数

触点类型 SPDT

额定电流Max 20A @28VDC

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel, Screw-In

外形尺寸

高度 70.36 mm

物理参数

工作温度 -40℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买1NT1-1A
型号: 1NT1-1A
描述:拨动开关 TOGGLE SW 1POLE 3POS SCRW TERM LOCK LVR
