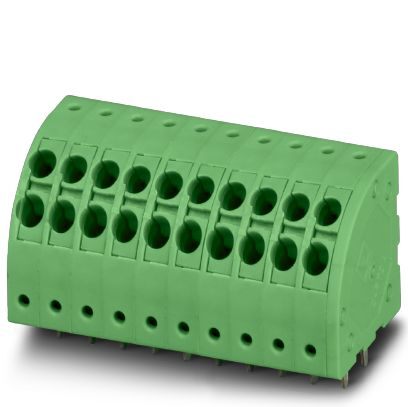

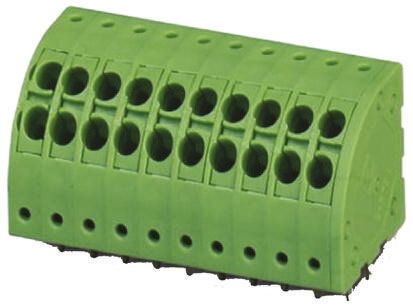

Phoenix Contact COMBICON PTDA 3.5mm 印刷电路板端子块3.5mm 节距 提供弹力或弹簧笼式 提供各种线规范围 斜角 双连接 绿色 ### Phoenix Contact COMBICON 3.5mm 印刷电路板端子块
Contact COMBICON PTDA 3.5mm 印刷电路板端子块
直角印刷电路板端子，弹簧笼式双连接高达 2 x 2.5 mm2。
### 特点和优势
弹簧笼式双连接，使用带释放按钮的直接插入式方法
5.0 mm 节距
大端子块容量，具有紧凑的尺寸
插头带有可选机械编码
极具吸引力的设计，用于视野范围内的连接
提供印刷电路板端子块和插入式
欧时:
Phoenix Contact 1724912 COMBICON PTDA 系列 3.5mm 节距 2 路 公 直角 印刷电路板接线端子块, 通孔
得捷:
TERM BLOCK 2POS 45DEG 3.5MM PCB
艾睿:
This spring cage 1724912 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 300 V. This device has a maximum current rating of 10 A. 1724912 is housed in polyamide. Its wire is 16-24 AWG. This product is 8.4 mm long, 16 mm tall and 16 mm deep. It uses the solder termination method.
Allied Electronics:
Conn; Term Blk; PCB; Spring Cage; 2; 3.5 mm; 45 Deg; 24-16 AWG; 13.5 A; 240 V
MASTER:
PCB terminal block - nominal current: 13.5 A - rated voltage III/2: 240 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 2 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection dire
