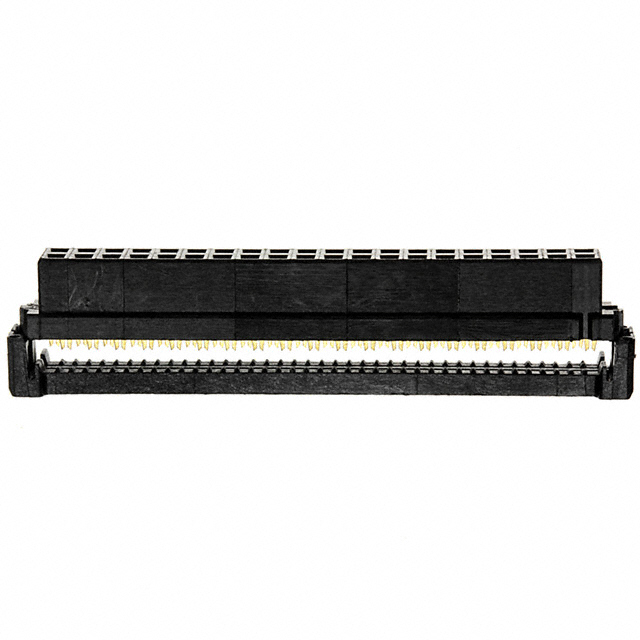

Conn IDC Connector F 40POS 2mm IDT RA Cable Mount
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
Product Highlights
Connector Type = .079 [2.0mm] AMP-LATCH
Number of Positions = 40
Receptacle
Without Mating Polarization
Terminate To Ribbon Cable
Search Keywords:
input/output, paddleboard, paddle board
得捷:
CONN RCPT 40POS IDC 28AWG GOLD
Chip1Stop:
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
Verical:
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
MASTER:
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
Online Components:
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
Electro Sonic:
Conn IDC Connector F 40 POS 2mm IDT RA Cable Mount
触点数 40
极性 Female
线规 28 AWG
触点电镀 Gold
排数 2
针脚数 40
额定电流Max 5A/触头
额定电压Max 125 VAC
接触电阻Max 25 mΩ
安装方式 Through Hole
引脚间距 2.00 mm
长度 45.19 mm
宽度 5.16 mm
高度 10.24 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -65℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
111626-9 TE Connectivity 泰科 | 当前型号 | 当前型号 |
2-111626-1 泰科 | 功能相似 | 111626-9和2-111626-1的区别 |
