1934219-1

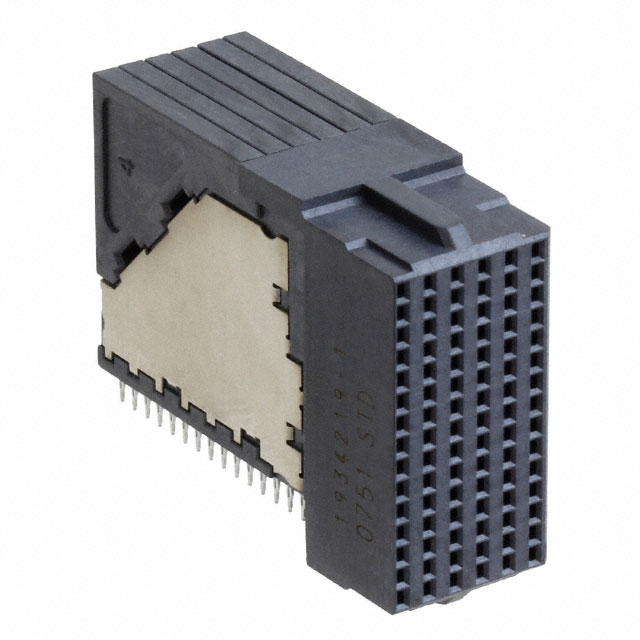

Conn Backplane RCP 90POS 1.9mm Press Fit RA Thru-Hole Tube

90 插座，母型插口 板边缘，通孔，直角 黑色 -

得捷:
CONN RCPT HD 90POS EDGE MNT

艾睿:
This 1934219-1 backplane connector from TE Connectivity will provide an interface between devices. This RCP connector&s;s 90 contacts that are made out of phosphor bronze and plated with gold. This is a 15-row connector. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. It has a right angle body orientation. Its pitch is 1.9 mm. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 1934219-1 is housed in black liquid crystal polymer. It uses the press fit termination method. This backplane connector has an operating temperature of -65 to 90 °C.

Verical:
Conn Backplane RCP 90 POS 1.9mm Press Fit RA Thru-Hole Tube

MASTER:
Tin man Recept Assy 5 pair 6 column

Powell:
Hard Metric Connectors TIN MAN RECEPT ASSY 5 PAIR 6 COLUMN

Online Components:
Tin man Recept Assy 5 pair 6 column

Electro Sonic:
Tin man Recept Assy 5 pair 6 column
