1-2132230-8

TE CONNECTIVITY 1-2132230-8 Wire-To-Board Connector, 2.5mm, 18Contacts, Header, Economy Power 2.5 Series, Through Hole

针座 通孔 18 位置 0.098"（2.50mm）

得捷:
CONN HEADER VERT 18POS 2.5MM

艾睿:

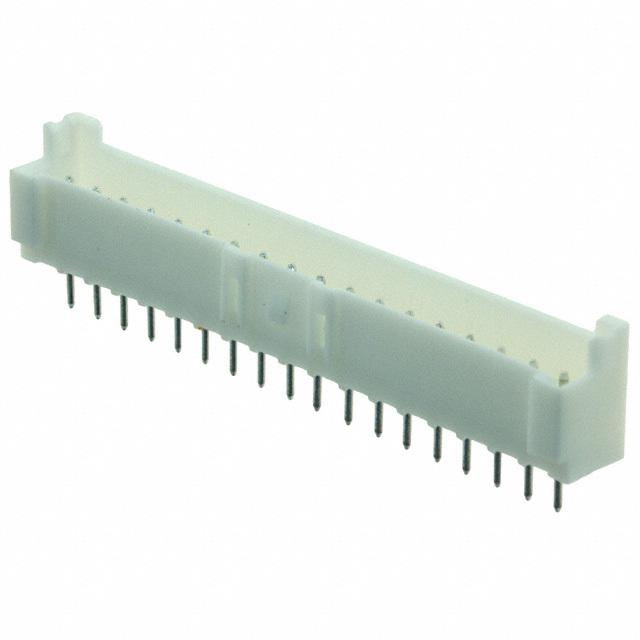

TE Connectivity brings you their shrouded 1-2132230-8 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 18 contacts that are made out of brass and plated with tin. It has a straight body orientation. It has a header type gender. Its pitch is 2.5 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -55 to 105 °C. 1-2132230-8 is housed in white nylon 6/6. This product is 47.5 mm long, 8.8 mm tall and 6.4 mm deep. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 18 POS 2.5mm Solder ST Thru-Hole Bag/Box

Verical:
Conn Shrouded Header HDR 18Power POS 2.5mm Solder ST Top Entry Thru-Hole Bag

Newark:
# TE CONNECTIVITY  1-2132230-8  Wire-To-Board Connector, 2.5 mm, 18 Contacts, Header, Economy Power 2.5 Series, Through Hole

MASTER:
HEADER ASSEMBLY, VERTICAL, ECONOMY POWER, 2.5mm CENTERLINE

Online Components:
EP2.5 Shrouded HDR ASSY 18P VE

Electro Sonic:
EP2.5 Shrouded HDR ASSY 18P VE
