1-103168-0

AMP - TE CONNECTIVITY 1-103168-0 Wire-To-Board Connector, 2.54mm, 24Contacts, Header, AMPMODU Mod II Series, Through Hole, 2Rows

24 MODII HDR DRST SHRD .100CL

Product Highlights

Header

Header Type = Shrouded

Number of Rows = Dual

Number of Positions = 24

Mating Post Length = 8.08 mm

得捷:
CONN HEADER VERT 24POS 2.54MM

贸泽:
Headers & Wire Housings SHROUDED VER DUAL 24 detent windows

艾睿:

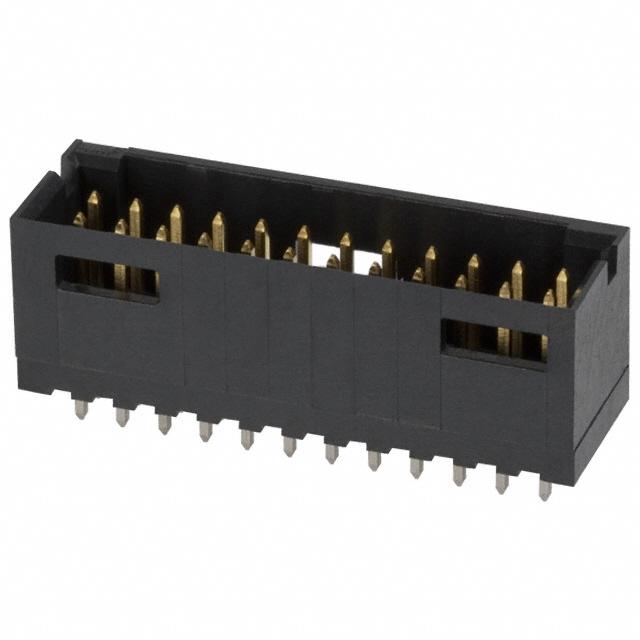

TE Connectivity brings you their shrouded 1-103168-0 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. 1-103168-0 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 33.32 mm long, 11.18 mm tall and 10.16 mm deep.

安富利:
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  1-103168-0  Wire-To-Board Connector, 2.54 mm, 24 Contacts, Header, AMPMODU Mod II Series, Through Hole, 2 Rows

MASTER:
HDR ASSY, MOD II, SHROUDED, 4 SIDES, DBL ROW, VERTICAL, .100X.100, WITH .025 SQ POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
24 MODII HDR DRST SHRD .100CL

ICbanQ:
CONN HEADER VERT .100 24POS 30AU

Electro Sonic:
24 MODII HDR DRST SHRD .100CL
