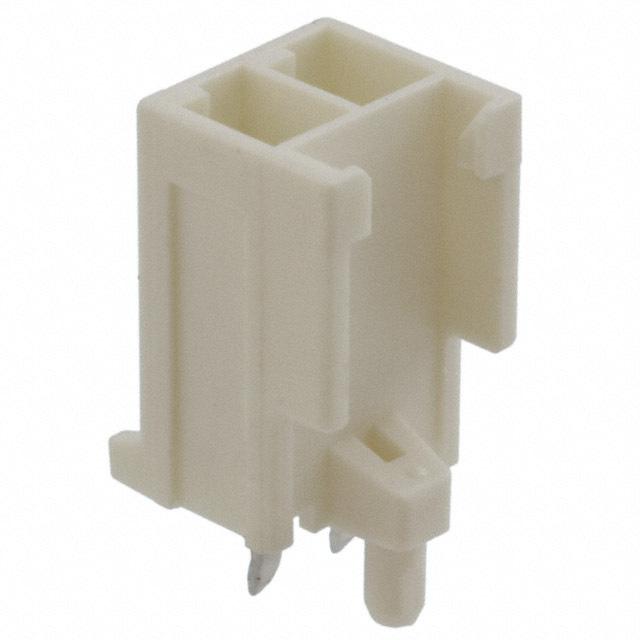

179838-1

TE Connectivity Power Double-Lock 系列TE Connectivity Power Double Lock 连接器设计紧凑，用于电源电路，并且十分适用于电冰箱、空调、洗衣机、气体设备、复印机和自动贩卖机中的布线。 这些连接器可以通过向外壳插入电线端接压接咬合触点，而单独使用。 但是为了实现正面安装，这些连接器安装有他们可以配备有双锁盖板，有助于防止/阻止触点的半途匹配。

双锁管座

得捷:
CONN HEADER VERT 2POS 3.96MM

立创商城:
3.96mm 1x2P 直插 接头 通孔 锡

欧时:
TE Connectivity RJ45-Rangierfeld Power Double Lock 系列 3.96mm节距 2路 公 通孔 179838-1

e络盟:
插接连接器, 针座, 2路, 3.96MM

艾睿:
The best way to get minimal losses of power in your circuit is by operating it with the 179838-1 power connector from TE Connectivity. This M connector&s;s 2 contacts that are made out of copper alloy and plated with tin. This connector has a single port. Its pitch is 3.96 mm. It has a male type gender. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. 179838-1 is housed in nylon 6/6. This device has a maximum current rating of 10 A/contact. This component will be shipped in tray format. This power connector has a minimum operating temperature of -30 °C and a maximum of 105 °C. This product is 9.1 mm long, 14.6 mm tall and 10.2 mm deep. Its 2 terminals use the solder termination method.

安富利:
Conn Power M 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port

Chip1Stop:
Conn Power M 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port

Verical:
Conn Power M 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  179838-1  Rectangular Connector, Power Double Lock Series, 2 Contacts, Header, 3.96 mm, Through Hole, 1 Row

MASTER:
AMP POWER DBL LOCK CONN 3.96mmPITCH 2P HEADER ASS"Y V TYPE

Powell:
Power Double-Lock Connectors

Online Components:
AMP POWER D/LOCK T/HDR ASSY 2P

Electro Sonic:
AMP POWER D/LOCK T/HDR ASSY 2P
