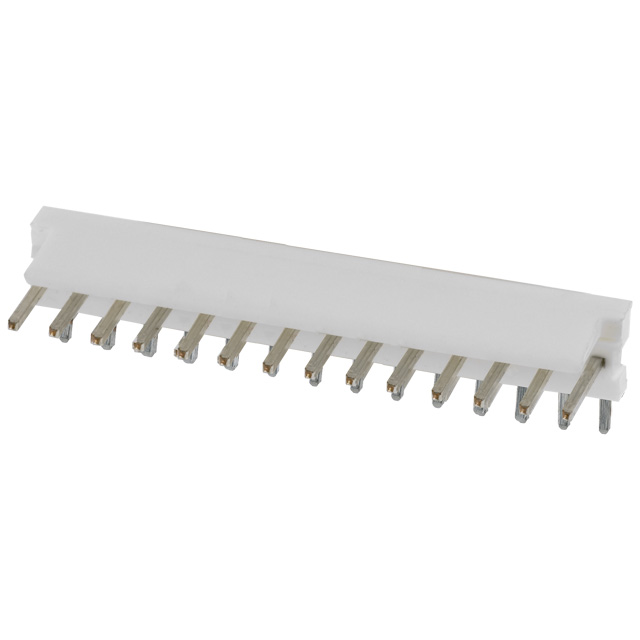

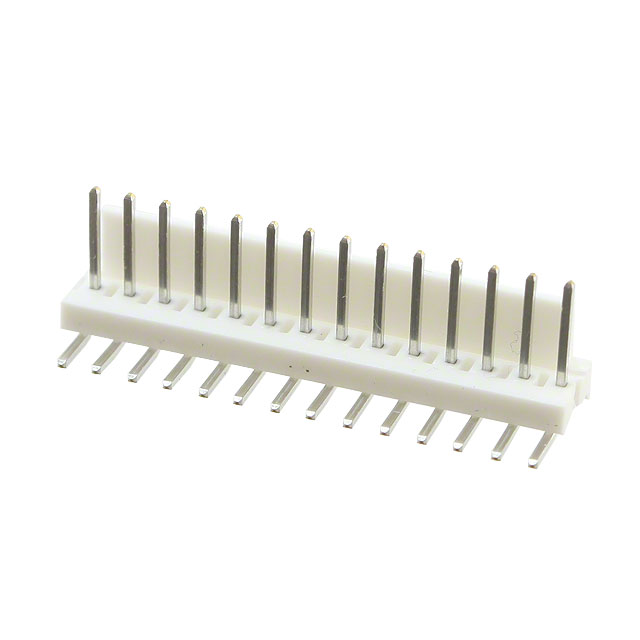

1-640455-4

集管和线壳 POLARIZED HEADER 14P Right Angle Post tin

针座 通孔，直角 14 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 14POS 2.54MM

贸泽:
集管和线壳 POLARIZED HEADER 14P Right Angle Post tin

艾睿:

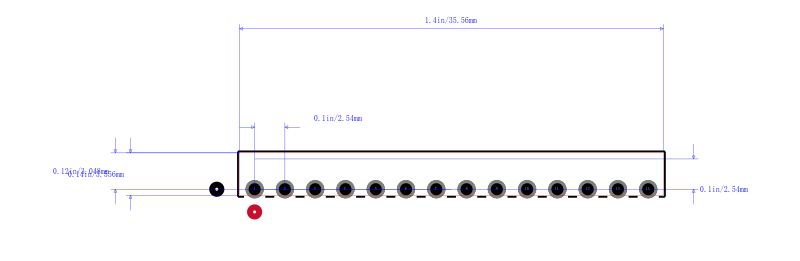

Use this wire to board 1-640455-4 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 14 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. It uses the solder termination method. 1-640455-4 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. This product is 35.56 mm long, 5.72 mm tall and 11.05 mm deep.

Chip1Stop:
Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-640455-4  14P MTA100 HDR ASSY SQ R/A POL

MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE

Online Components:
14P MTA100 HDR ASSY SQ R/A POL

Electro Sonic:
14P MTA100 HDR ASSY SQ R/A POL
