1825129

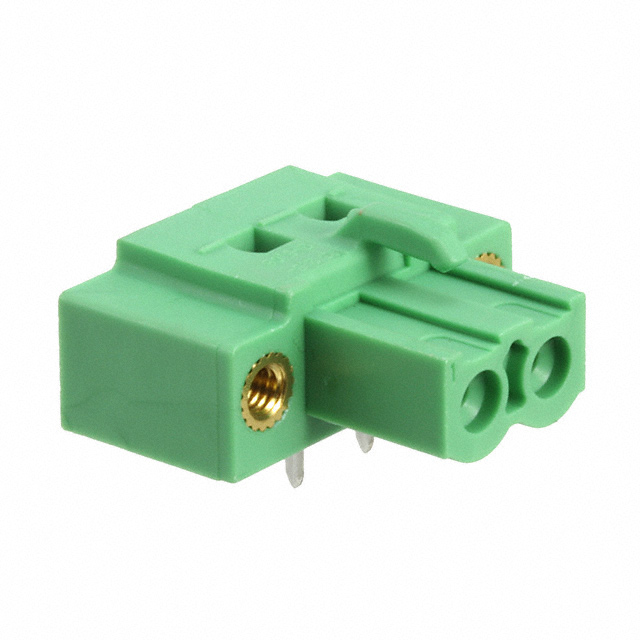

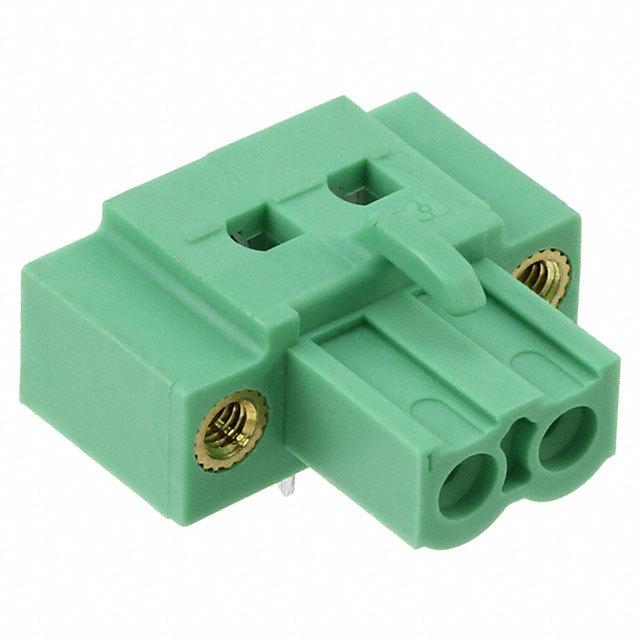

Conn Wire to Board HDR 2POS 5.08mm Solder RA Thru-Hole

2 Position Terminal Block Header, Female Sockets 0.200" 5.08mm 90°, Right Angle Through Hole

得捷:
TERM BLOCK HDR 2POS 90DEG 5.08MM

艾睿:
This wire to board 1825129 header connector from Phoenix Contact reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector has 2 contacts that are plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 320 V. It has a header type gender. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 20.28 mm long, 10.2 mm tall and 19 mm deep. 1825129 is housed in green polyamide.
