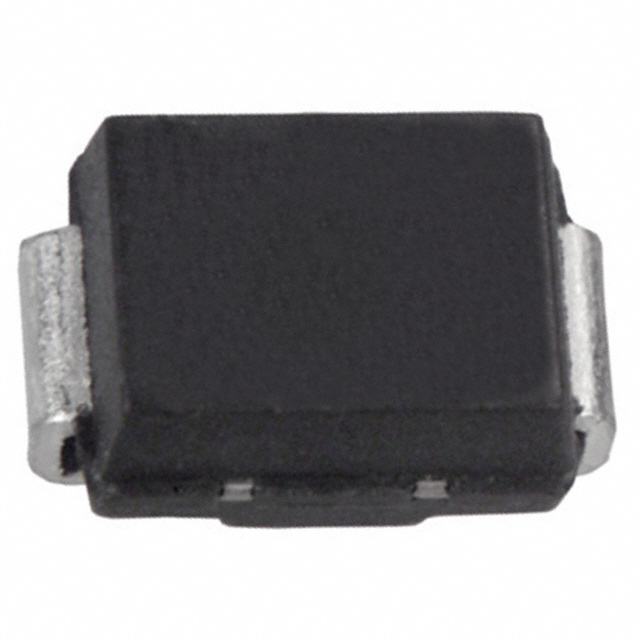

DiodesZetex 1SMB5924B-13 1 齐纳二极管, 单路, 9.1V 5% 3 W 表面贴装 2-Pin SMB
Features
3.0W Power Dissipation
Ideally Suited for Automated Assembly
3.3V - 39V Nominal Zener Voltage Range
Standard VZTolerance is ± 5%
ESD Rating of Class 3 >16kV per Human Body Model
Lead-Free Finish; RoHS Compliant Notes 1 & 2
Halogen and Antimony Free. “Green” Device Note 3
得捷:
DIODE ZENER 9.1V 3W SMB
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this 1SMB5924B-13 zener diode from Diodes Zetex is exactly what you need. This device has a maximum regulator current of 164 mA. Its test current is 41.2 mA. Its maximum leakage current is 5 μA. Its maximum power dissipation is 550 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
Allied Electronics:
Diode, Zener, Power, Single, 9.1V, 0.55W, SMB2
安富利:
Diode Zener Single 9.1V 5% 550mW 2-Pin SMB T/R
Chip1Stop:
Diode Zener Single 9.1V 5% 550mW 2-Pin SMB T/R
Win Source:
DIODE ZENER 9.1V 3W SMB
容差 ±5 %
额定功率 3.00 W
正向电压 1.5V @200mA
耗散功率 550 mW
测试电流 41.2 mA
稳压值 9.1 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 3 W
安装方式 Surface Mount
引脚数 2
封装 SMB
封装 SMB
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
