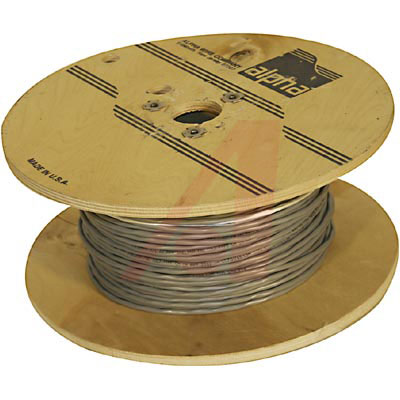

ALPHA WIRE 2401C SL002 Multiconductor Shielded Cable, Control, Slate, 2Conductor, 22AWG, 500Ft, 152.4m
PVC Jacket Foil Shielded Multiconductor Cable, 0.016 in. Insulation, 0.020 in. Jacket Thickness
UL2092, 2093, 2094, UL Type CM, CSA PCC FT4- .
- *
- .
- * Stranded tinned copper. ** Insulation:** Color coded polyethylene 0.016". ** Shield:** Aluminum/polyester tape 100% coverage. ** Jacket:** Gray polyvinylchloride. ** Operating Temperature Range:** +60°C.
Foil faced outward shield, stranded tinned copper drain wire.
线规 22 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 2
工作温度Max 75 ℃
额定电压 300 V
长度 152.44 m
颜色 Black, Natural
绝缘材质 Polyethylene
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Security, Communications & Networking, Audio, Portable Devices, Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2401C SL002 Alpha Wire | 当前型号 | 当前型号 |
5064C SL002 Alpha Wire | 类似代替 | 2401C SL002和5064C SL002的区别 |
5854/7 RD005 Alpha Wire | 功能相似 | 2401C SL002和5854/7 RD005的区别 |
5064C SL001 Alpha Wire | 功能相似 | 2401C SL002和5064C SL001的区别 |
