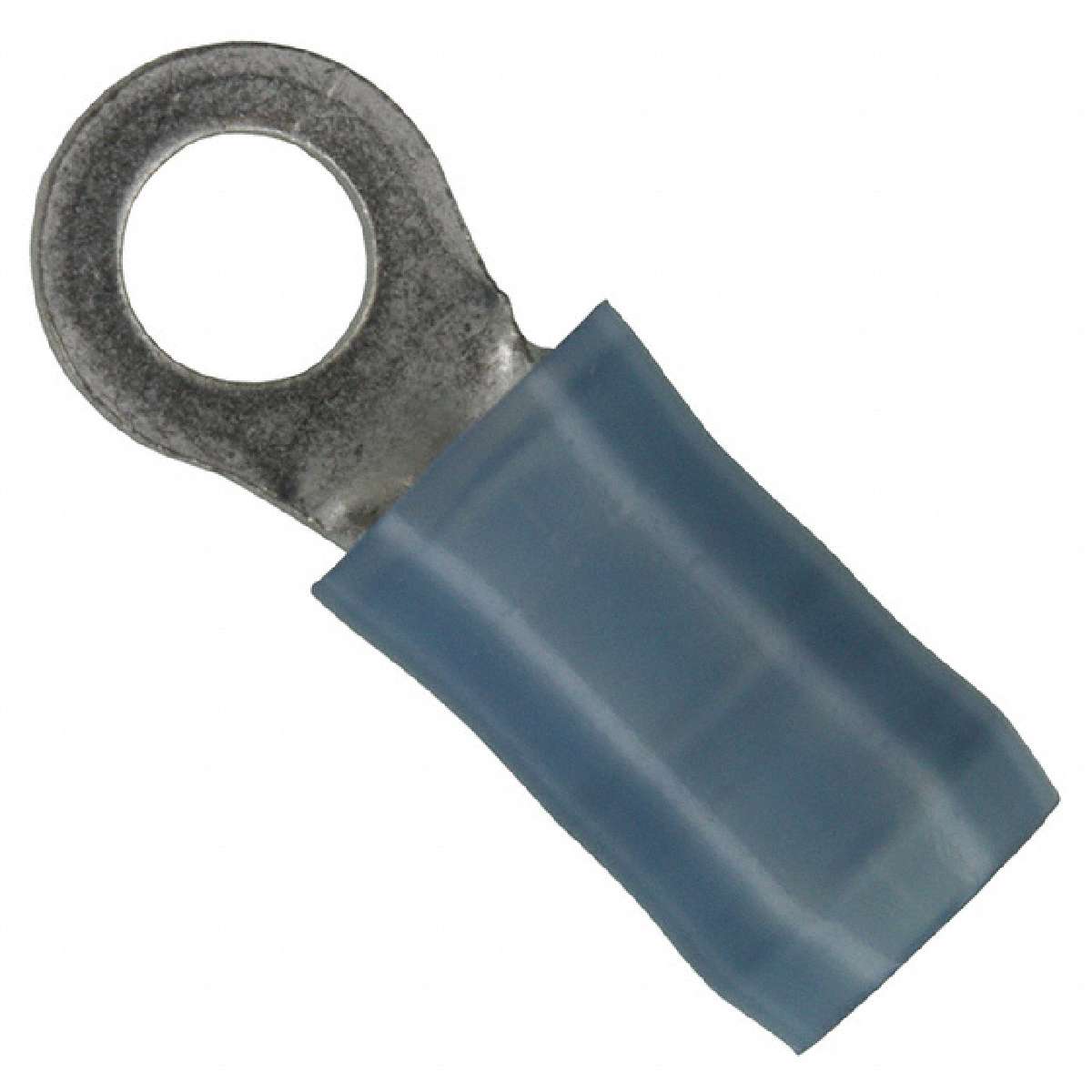

AMP FROM TE CONNECTIVITY 2-320561-2 端子, 环形舍, #6, 压接, 蓝色
- 环形 6 接线柱 圆形 14-16 AWG 压接
得捷:
CONN RING CIRC 14-16AWG #6 CRIMP
立创商城:
2-320561-2
贸泽:
Terminals PIDG RING 16-14
e络盟:
端子, 环形舍, #6, 压接, 蓝色
艾睿:
The best way to connect two terminal blocks in your application is by using the ring tongue terminal 2-320561-2 wire terminal from TE Connectivity. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 17.86 mm long and 6.35 mm. Its wire is 14-16 AWG.
Allied Electronics:
PIDG NYLON & KD-TAPE, TERMINAL, PIDG R 16-14 6
安富利:
Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin Tape
Chip1Stop:
Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin T/R
Verical:
Ring Tongue Terminal 14-16AWG Copper Blue 17.86mm Tin T/R
Newark:
# AMP - TE CONNECTIVITY 2-320561-2 Ring Tongue Terminal, 0.145 ", PIDG Series, 14 AWG, Nylon Polyamide
MASTER:
Ring Tongue Terminal - #6 - 14 AWG - PIDG Series - Blue.
Powell:
Ring and Spade Tongue Terminals
Online Components:
TERMINAL,PIDG R 16-14 6
Electro Sonic:
Ring Tongue Terminal - #6 - 14 AWG - PIDG Series - Blue.
极性 Female
线规 14AWG ~ 16AWG
触点电镀 Tin
额定电压DC 300 V
方向 Straight
端接类型 Ring Lug, Ring
额定电压Max 300 VAC
额定电压 300 VAC
封装 -
长度 17.86 mm
宽度 6.35 mm
封装 -
厚度 0.79 mm
颜色 Blue
触点材质 Copper
材质 Copper
绝缘材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2-320561-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
320561 泰科 | 完全替代 | 2-320561-2和320561的区别 |
8-320561-1 泰科 | 完全替代 | 2-320561-2和8-320561-1的区别 |
