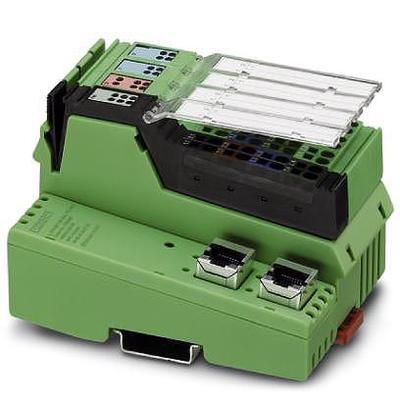

Phoenix Contact Bus Coupler Bus Coupler 8Input, 4 Output 24V dc 119.8 x 80 x 71.5mm

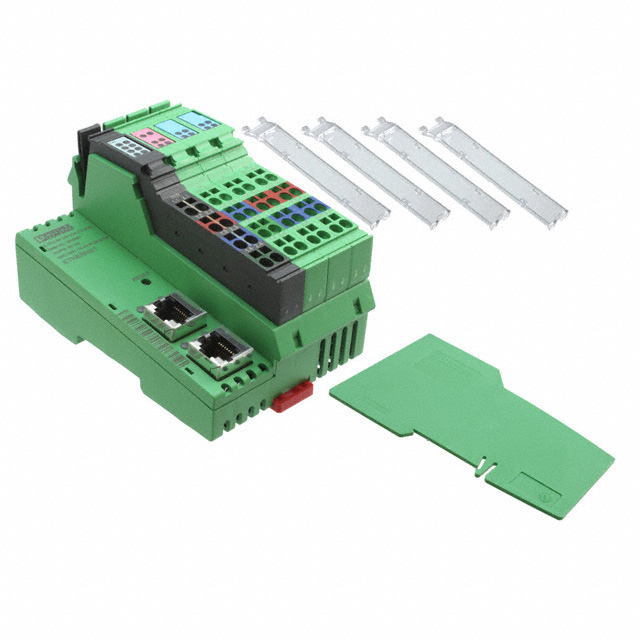

The bus coupler for the Modbus/TCPUDP protocol has 4 digital outputs and 8 digital inputs. This package contains all the necessary Inline connectors for connecting the supply and the I/Os.
The Inline terminals can be labeled using pull-out labeling fields. The fields have insert cards that can be labeled individually to suit the application. Additionally, there is the ZBFM-6... Zack marker strip for labeling the terminal points.
**Features:**
* Up to 61 Terminals 16 PCP Devices Can Be Connected
* 80 mm Design Width
* Can Be Programmed with C, C++, C#, Visual Basic or Other High-Level Languages
* Data Exchange via OPC Server Supported
* Automatic Speed Detection of the System Bus
* Web-Based Management
* 8 Digital Inputs, 4 Digital Outputs Onboard
* 2 RJ45 Connections
* Software Interfaces for Access via TCP/IP: Device Driver Interface DDI and High-Level Language Fieldbus Interface HFI
