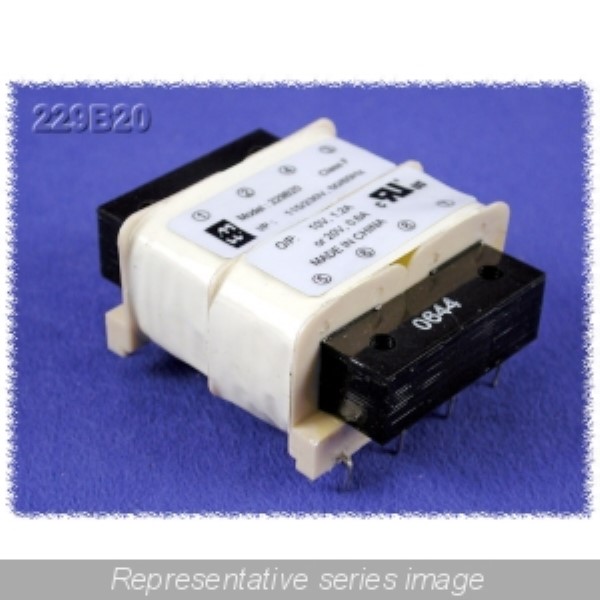

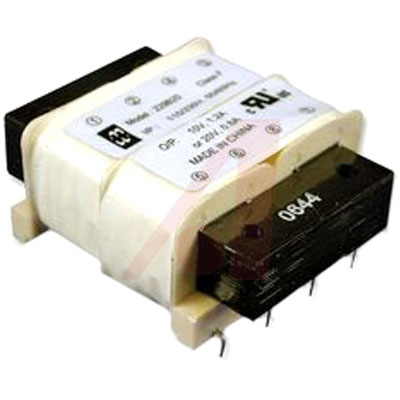

Power Transformer 115/230VAC Primary 60/120VAC Secondary 200/100mA Output 12VA 50/60Hz
**Features:**
* CSA Certified File #LR3902
* UL Recognized File #E50394
* Universal Dual Primary 115/230 V, 50/60 Hz
* Low Primary to Secondary Coupling
* Balanced Windings
* No Electrostatic Shield Required
* Low EMF Radiation Due to Semi-Toroidal Design
* Dual — Split Bobbin Design
* High Insulation — Hi-Pot of 1,750 VRMS
* Class B Insulation — 130°C
* Low Profile Mounting
得捷:
PWR XFMR SEMI-TORO 12VA TH
艾睿:
Power Transformer 1750Vrms 12VA 8 Terminal PC Pin Thru-Hole
Allied Electronics:
Transformer, Split Bobbin; 12VA; Sec:100mA; Pri:115/230VAC; Sec:120V; PC; 1750Vrms
Newark:
# HAMMOND 229B120 TRANSFORMER LOW PROFILE, POWER
MASTER:
transformer - power, low volt, pc mount
Online Components:
transformer - power, low volt, pc mount
