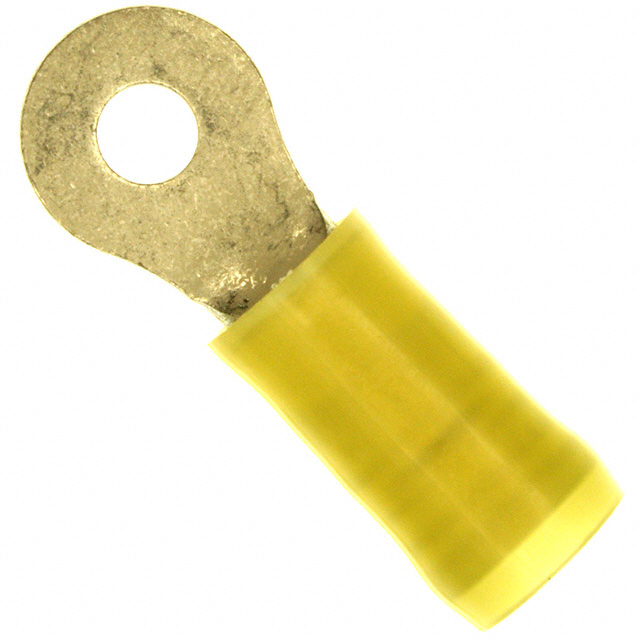

PIDG 12-10 AWG 直 封闭桶 环形舌片 端子
- 环形 6 接线柱 圆形 10-12 AWG 压接
得捷:
CONN RING CIRC 10-12AWG #6 CRIMP
立创商城:
2-320567-2
艾睿:
Make a connection with your terminal blocks using the ring tongue terminal 2-320567-2 wire terminal from TE Connectivity. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its wire is 10-12 AWG. This product is 27.51 mm long and 9.53 mm.
安富利:
Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Tape Mounted
Chip1Stop:
Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin T/R
Verical:
Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Tape Mounted
Newark:
# AMP - TE CONNECTIVITY 2-320567-2 TERMINAL,PIDG R 12-10 6 New
MASTER:
TERMINAL, RING TONGUE, PIDG WIRE SIZE: 12-10 AWG
Powell:
Ring and Spade Tongue Terminals
Online Components:
TERMINAL,PIDG R 12-10 6
Electro Sonic:
TERMINAL,PIDG R 12-10 6
极性 Female
线规 10AWG ~ 12AWG
触点电镀 Tin
额定电压DC 300 V
方向 Straight
端接类型 Ring Lug, Ring
工作温度Max 105 ℃
额定电压Max 300 VAC
额定电压 300 V
封装 -
长度 27.51 mm
宽度 9.53 mm
封装 -
厚度 1.02 mm
颜色 Yellow
触点材质 Copper
材质 Copper
绝缘材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2-320567-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
320567 泰科 | 完全替代 | 2-320567-2和320567的区别 |
8-320567-2 泰科 | 完全替代 | 2-320567-2和8-320567-2的区别 |
