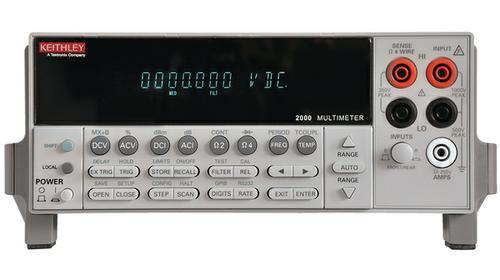

2000/E/2000-SCAN

台式数字万用表, 扫描仪, 2000系列, 真RMS, 自动, 手动量程, 1 kV, 3 A, 6.5数位

The from is a 6½ digit multimeter with 2000-SCAN general purpose scanner card. Based on the same high speed, low noise A/D converter technology as model 2001 and 2002, the 2000 is fast, accurate and highly stable instrument that"s as easy to operate as it is to afford. 2000-SCAN scanner card is used for multipoint measurements and has 10m analogue input channels 2-pole and can be configurable as 4-pole, 5-channel. Model 2000 combines broad measurement ranges with superior accuracy specifications. It offers exceptional measurement speed at any resolution. At 6½ digits, it delivers 50 triggered rdgs/s over IEEE-488 bus. At 4½ digits, it can read up to 2000 rdgs/s into its internal 1024 reading buffer, making it an excellent choice for applications where throughput is critical. It has 13 built-in measurement functions including DCV, ACV, DCI, ACI, 2Wohm, 4Wohm, temperature, frequency, period, dB, dBm, continuity and diode testing.

.

High throughput, Fluke 8840/42 command set, IEEE-488 and RS-232 interfaces

.

100.0000mV to 1000.000V DC voltage and 10.00000mA to 3.00000A DC current measurement

.

100.0000mV to 750.000V and 1.000000A to 3.00000A true RMS AC voltage and current measurement

.

100.0000 ohm to 100.0000Mohm resistance measurement range

.

100V / 120V / 220V / 240V ±10% c, 45Hz to 66Hz frequency, 22VA power consumption

.

Simple to understand and easy to use front panel design

.

Operating temperature range from 0°C to 50°C

.

Conforms with European union directive 73/23/EEC, EN 610110-1, UL 3111-1

.

Thermocouple temperature range from -200°C to +1372°C, frequency from 3Hz to 500KHz

.

89 x 213 x 370mm rack mount, 104 x 238 x 370mm bench mount HxWxD dimension, 2.9Kg net weight
