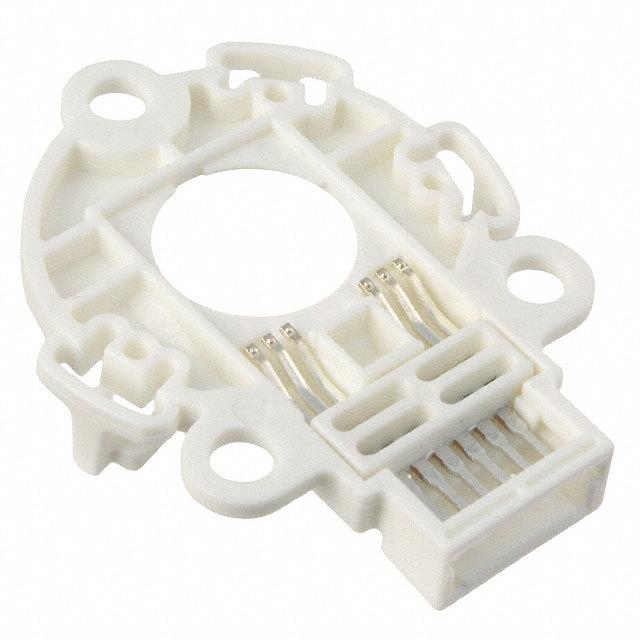

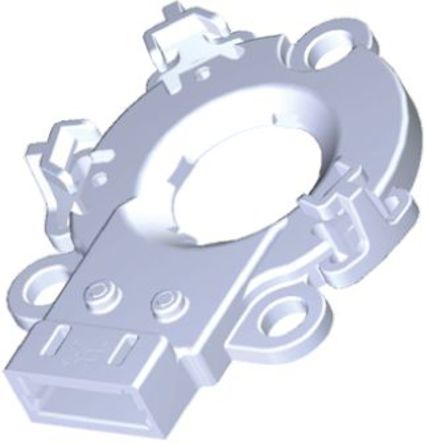

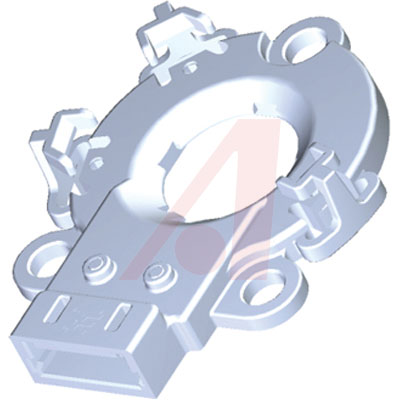

Solderless LED Socket, Type CMThe Solderless LED Socket, Type CM series, from TE Connectivity, provides a solderless Class 2 parallel 6 conductor quick termination method for Crees XLamp® MP-L™ LED series e.g. stock no. 725-0123. The LED sockets use solderless termination techniques to allow easy integration of the LED into the end customers lighting fixtures using simple screw-down installation. The solderless LED sockets also feature robust, snap attachment for LEDILs Tyra series of reflector optics, e.g. stock no. 724-0766. The range includes: LED to wire and LED to board versions, with or without optic latches.Solderless termination to Cree XLamp MP-L LEDs Snap-on optics assembly using LEDILs Tyra series reflector optics 6 line parallel terminations in both wire and board versions Housing: 94 V-0 rated high temperature resistant thermoplastic Contacts: Base material copper alloy, Silver plated interface to Cree XLamp MP-L LED, Tin plated interface to AMP Mini CT or to PCB Solderless LED sockets are ideal for applications including; commercial and residential lighting fixtures and integrated custom lighting ### 注For parallel LED to Wire sockets, suitable mating connectors are: Housing 353908-6 stock no. 683-2222, Contact 353907-1 stock no. 680-5249.### LED 安装硬件 - TE Connectivity
无焊接 插座，CM 型
无焊接 LED 插座，CM 型系列，来自于 ，提供无焊接 2 类并行（6 导线）快速端接方法，用于 Cree 的 XLamp® MP-L™ LED 系列（例如库存号 725-0123）。LED 插座使用无焊接端接技术，使用简单的螺钉旋入安装即可轻松地将 LED 集成到终端客户的照明装置中。
无焊接 LED 插座还具有坚固的咬接附件，用于 LEDIL 的 Tyra 系列反射镜光学镜片，例如库存号 724-0766。
该系列包括：LED 对线和 LED 对板型号，带或不带光学镜片闩锁。
无焊接端接至 Cree Xlamp MP-L LED
使用 LEDil Tyra 系列反射镜光学镜片的扣入式光学镜片组件
6 行并行端接，提供线和板型号
外壳：94 V-0 等级耐高温热塑性
触点：基体材料铜合金，至 Cree Xlamp MP-L LED 的接口镀银，至 AMP Mini CT 或印刷电路板的接口镀锡
无焊接 LED 插座特别适用于以下应用，包括：商业和住宅照明装置和集成的定制照明
### 注
有关并行 LED 对线插座，合适的配接连接器是：外壳 353908-6（库存号 683-2222），触点 353907-1（库存号 680-5249）。
