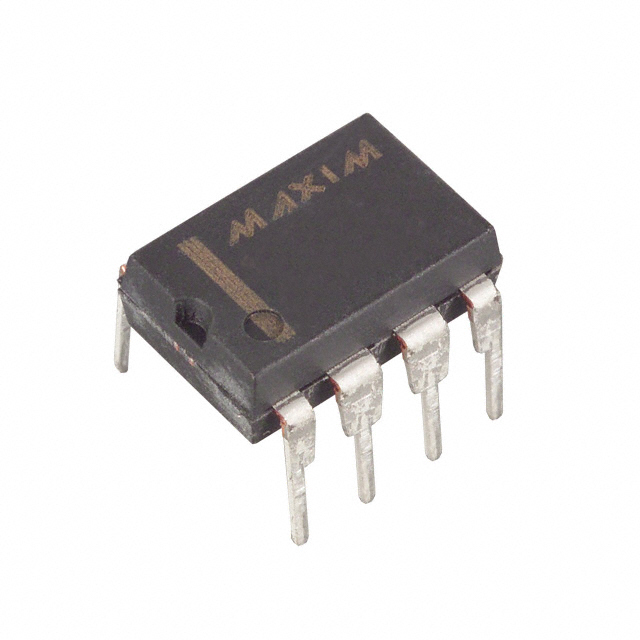

DG419DJ+

MAXIM INTEGRATED PRODUCTS  DG419DJ+  模拟开关, 精准, SPDT, 1 放大器, 100 ohm, ± 10V至± 30V, ± 4.5V至± 20V, DIP, 8 引脚

1 电路 IC 开关 2：1 35 欧姆 8-PDIP

得捷:
IC SWITCH SPDT 8DIP

欧时:
Improved, SPST/SPDT Analog Switches

立创商城:
DG419DJ+

贸泽:
模拟开关 IC Improved, SPST/SPDT Analog Switches

安富利:
Maxim’s redesigned DG419 precision, CMOS, monolithic analog switches now feature guaranteed on-resistance matching 3Ω max between switches and guaranteed on-resistance flatness over the signal range 4Ω max. These switches conduct equally well in either direction and guarantee low charge injection, low power consumption, and an ESD tolerance of 2000V minimum per Method 3015.7. The new design offers low off-leakage current over temperature less than 5nA at +85°C.The DG419 is singlepole/double-throw SPDT with one normally closed switch and one normally open switch. Switching times are less than 175ns max for tON and less than 145ns max for tOFF. Operation is from a single +10V to +30V supply, or bipolar ±4.5V to ±20V supplies. The improved DG419 are fabricated with a 44V silicon-gate process.

Chip1Stop:
Analog Switch Single SPDT 8-Pin PDIP N

TME:
IC: analog switch; SPDT; Channels:1; DIP8; 10÷30VDC

Newark:
# MAXIM INTEGRATED PRODUCTS  DG419DJ+  Analog Switch, Precision, SPDT, 1 Channels, 100 ohm, ± 10V to ± 30V, ± 4.5V to ± 20V, DIP, 8 Pins
