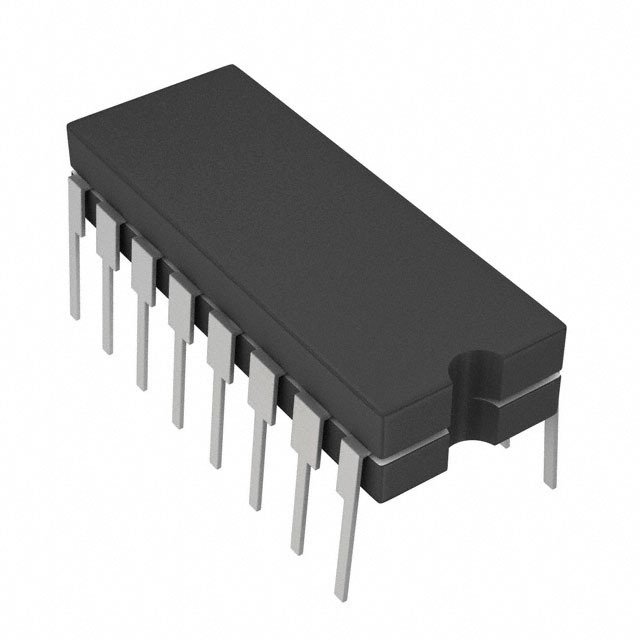

DG201AAK/883B

Analog Switch Quad SPST 16Pin CDIP N

4 Circuit IC Switch 1:1 175Ohm 16-CERDIP

得捷:
IC SWITCH QUAD SPST 16CERDIP

安富利:
The DG201A and DG211 are normally closed, quadsingle-pole single-throw SPST analog switches. TheseCMOS switches can be continuously operated withpower supplies ranging from ±4.5V to ±18V. Maximguarantees that these switches will not latch up if thepower supplies are disconnected with input signals stillconnected.Both devices have guaranteed break-before-makeswitching. The DG201A differs from the DG211 primarilyin switching speeds. The DG201A has a maximumturn-off time of 450ns and a maximum turn-on time of600ns. The DG211 has a maximum turn-off time of500ns and a maximum turn-on time of 1000ns.Compared to the original manufacturer"s products,Maxim"s DG201A and DG211 consume significantlylower power making them better suited for portableapplications. Maxim has also eliminated the need forthe third VL power supply that is required for the operationof the original manufacturer"s DG211.

Chip1Stop:
Analog Switch Quad SPST 16-Pin CDIP N
