DG411CY+

MAXIM INTEGRATED PRODUCTS  DG411CY+  模拟开关, CMOS, SPST - 常闭, 4 放大器, 80 ohm, 10V 至 30V, ± 4.5V 至 ± 20V, NSOIC, 16 引脚

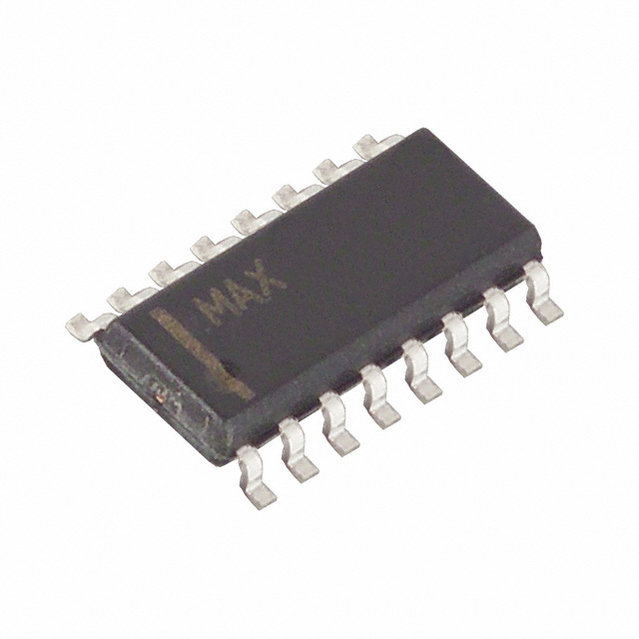

The is an improved quad SPST analogue switch in 16 pin NSOIC package. This device features low on-resistance matching between switch 3ohm maximum and on-resistance flatness over the signal range 4ohm maximum. The low on-resistance switch conducts equally well in either direction. It is used in sample and hold circuits, heads-up displays, guidance & control systems, military radios, PBX, PABX and battery operated systems.

.

Supply voltage range from 10V to 30V, ±4.5V to ±20V

.

Operating temperature range from 0°C to 70°C

.

Normally closed NC switch

.

Plug-in upgrade for industry standard

.

Maximum improved charge injection of 10pC

.

Improved off leakage current over temperature < 5nA at +85°C

.

Withstands electrostatic discharge 2000V min per method 3015.7

.

Maximum RDSON of 80 ohm at 25°C single supply, low power consumption of 35µW

.

Rail to rail signal handling

.

TTL/CMOS logic compatible
