DG412AK/883B

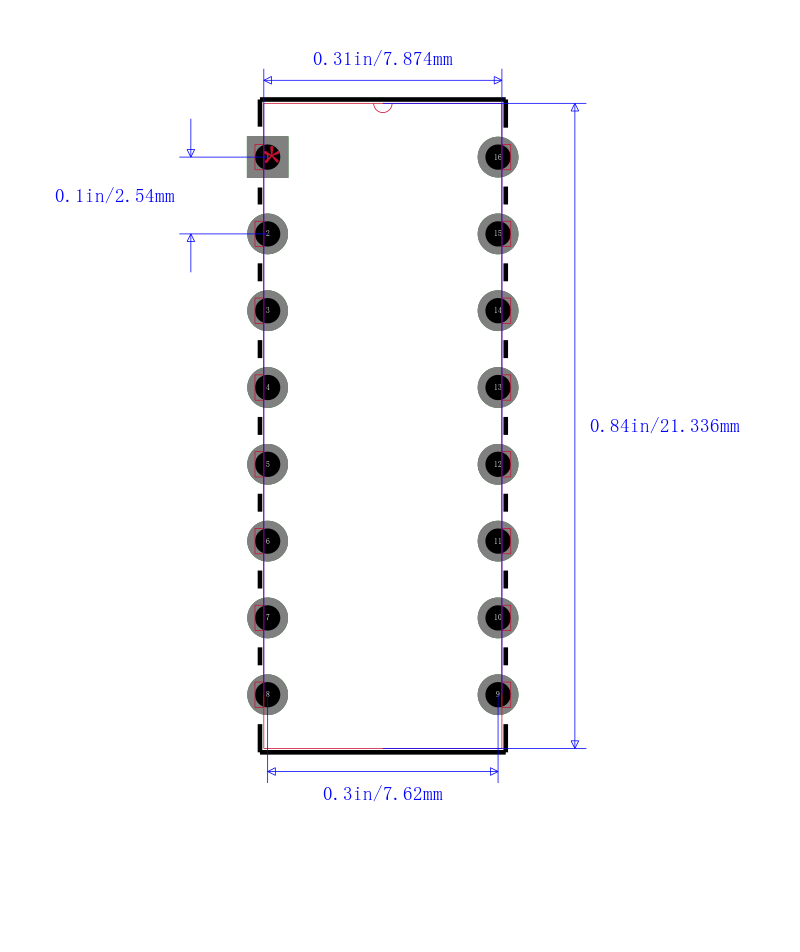

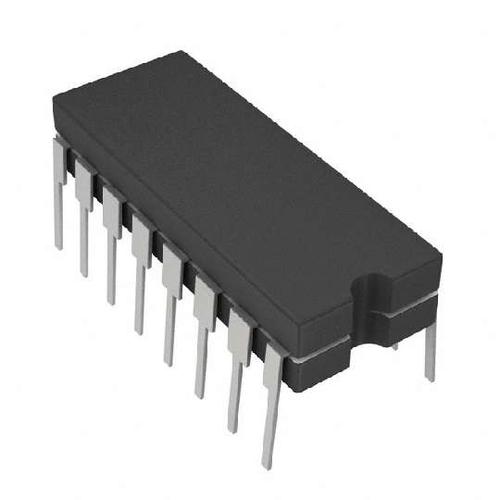

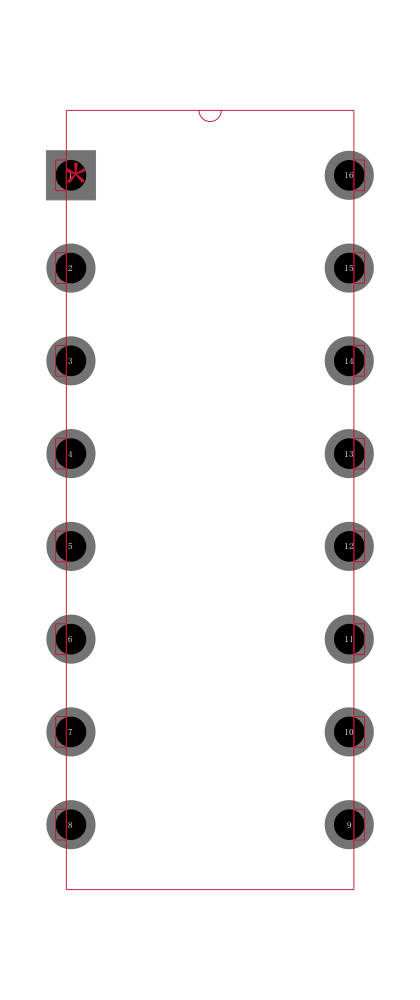

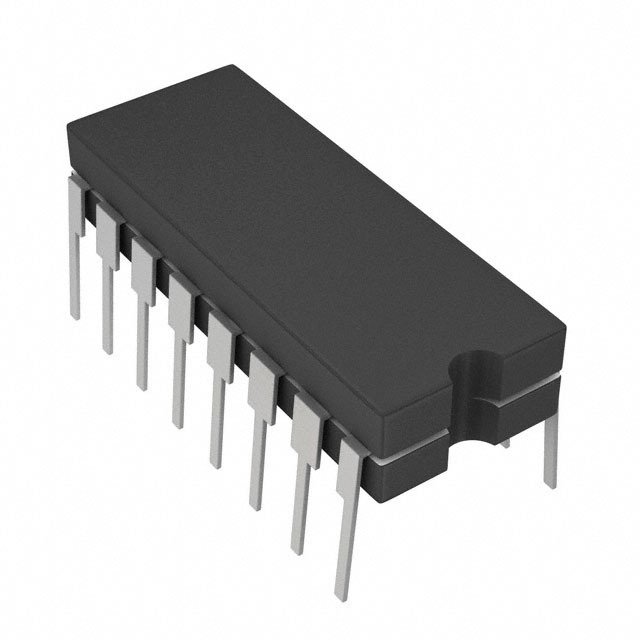

Analog Switch Quad SPST 16Pin CDIP N

4 Circuit IC Switch 1:1 30Ohm 16-CDIP

得捷:
IC SWITCH QUAD SPST 16CDIP

立创商城:
DG412AK/883B

安富利:

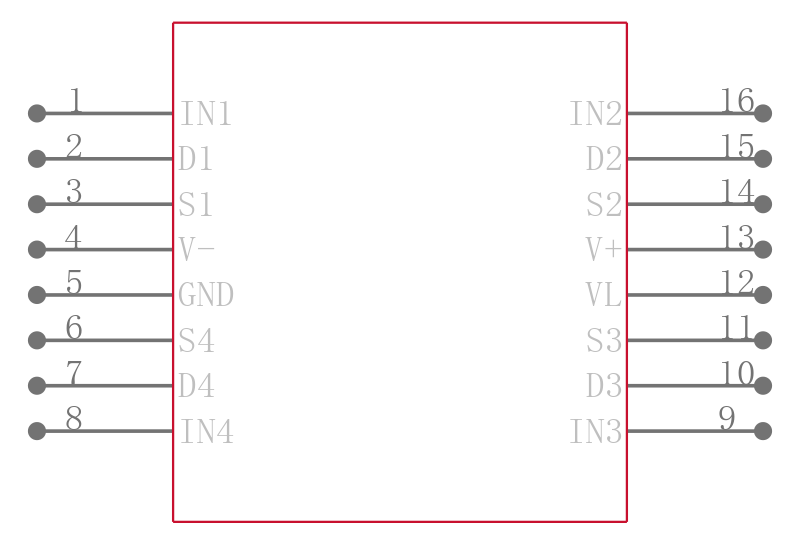

Maxim’s redesigned DG412 analog switches now feature low on-resistance matching between switches 3Ω max and guaranteed on-resistance flatness over the signal range ∆4Ω max. These low on-resistance switches conduct equally well in either direction. They guarantee low charge injection, low power consumption, and an ESD tolerance of 2000V minimum per Method 3015.7. The new design offers lower off leakage current over temperature less than 5nA at +85°C.The DG412 are quad, single-pole/single-throw SPST analog switches. the DG412 is normally open NO. The DG413 has two NC switches and two NO switches. Switching times are less than 150ns max for tON and less than 100ns max for tOFF. These devices operate from a single +10V to +30V supply, or bipolar ±4.5V to ±20V supplies. Maxim’s improved DG412 are fabricated with a 44V silicongate process.
