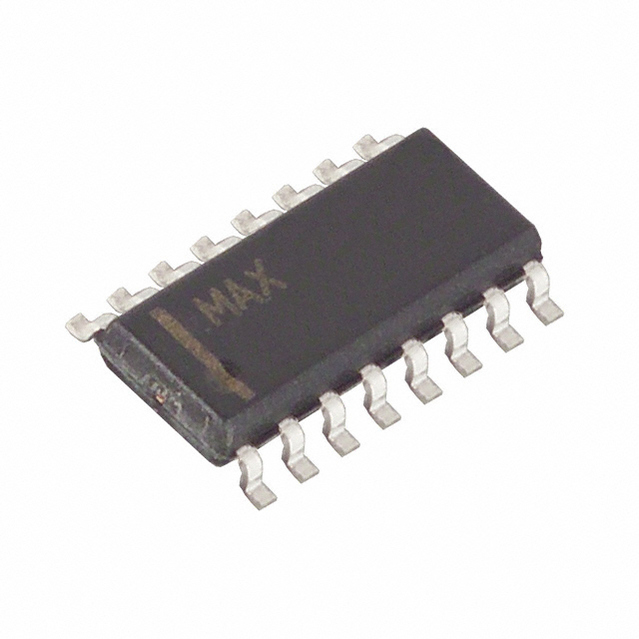

DG212DY+T

SPST, 4 Func, 1Channel, CMOS, PDSO16, 0.15INCH, ROHS COMPLIANT, MS-012, SOIC-16

4 电路 IC 开关 1：1 175 欧姆 16-SO

得捷:
IC SWITCH QUAD SPST 16SOIC

立创商城:
DG212DY+T

安富利:
The DG212 are normally open, quad singlepole single-throw SPST analog switches. These CMOS switches can be continuously operated with power supplies ranging from ±4.5V to ±18V. Maxim guarantees that these switches will not latch up if the power supplies are disconnected with input signals still connected.The DG212 are similar to the DG201/DG211 except for inverted control inputs. All devices have guaranteed break-before-make switching, as well as essentially constant on-resistance over the analog signal range. All switches conduct current in either direction and add no offset to the output signal.Compared to the original manufacturer’s products, Maxim’s DG212 consume very little power, making them better suited for portable applications. Maxim has also eliminated the need for the third logic power supply VL that is required for the operation of the original manufacturer’s DG212 without sacrificing compatibility.
