DG309DY+

MAXIM INTEGRATED PRODUCTS  DG309DY+  模拟开关, 低功率, SPST - 常闭, 4 放大器, 100 ohm, 5V 至 30V, ± 5V 至 ± 20V, NSOIC, 16 引脚

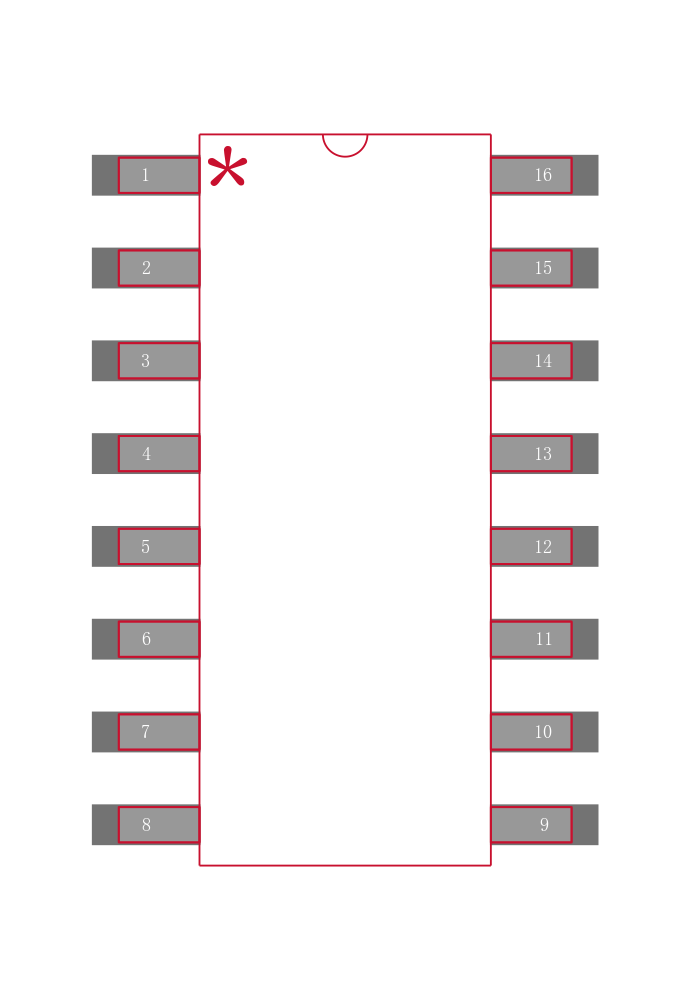

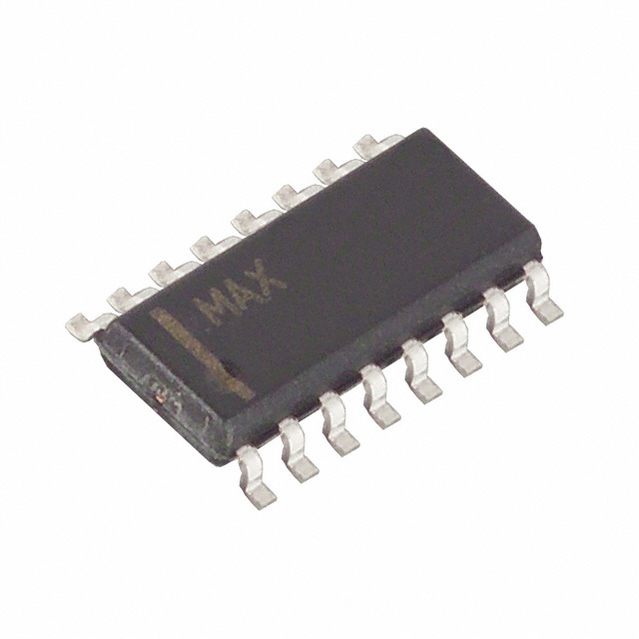

The is a quad, SPST analogue switch in 16 pin NSOIC package. The DG308A is a quad, single pole single throw normally closed SPST, NC analogue switch. It features fast switching speeds and low on-resistance over the analogue range. It also features include a turn-on time under 120ns, a turn-off time under 90ns and a channel on-resistance of 60 ohm. CMOS inputs provide reduced input loading and very low leakage currents. It also features a 44V maximum breakdown voltage rating that allows 30V peak to peak switch-off blocking capacity. The DG308A can be used with split supplies or a single positive supply while retaining CMOS logic compatible inputs. Typical applications include sample and hold circuits, test equipment, PBX, PABX, guidance and control systems, heads-up displays and military radios.

.

Supply voltage range is 5V to 30V, ± 5V to ± 20V

.

Operating temperature range from -40°C to 85°C

.

Single/bipolar supply operation

.

Monolithic low power CMOS design

.

Analogue signal range from -15V to 15V
