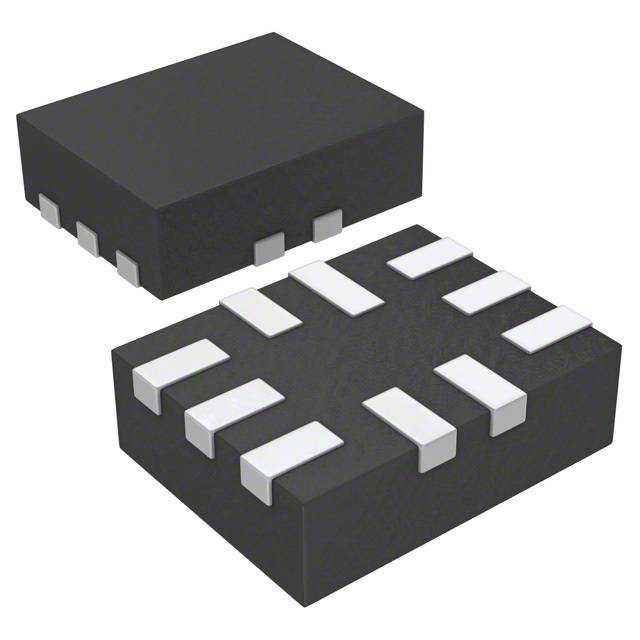

DG2730DN-T1-GE4

2端口， USB 2.0高速（ 480 Mbps）的开关，双刀双掷模拟开关 2 Port, USB 2.0 High Speed 480 Mbps Switch, DPDT Analog Switch

* Halogen-free according to IEC 61249-2-21 definition * Wide operation voltage range * Low on-resistance, 7 Ω typical at 3 V * Low capacitance, CON = 5.8 pF typical * 3 dB high bandwidth: 900 MHz typical * Low bit to bit skew: 40 pS typical * Low power consumption * Low logic threshold: V * Power down protection: D+/D- pins can tolerate up to 5 V when V+ = 0 V * Logic S and OE above V+ tolerance * 8 kV ESD protection HBM * Latch-up current 300 mA per JESD78 * Lead Pb-free low profile miniQFN-10 1.4 mm x 1.8 mm x 0.55 mm * Compliant to RoHS Directive 2002/95/EC
