DSPIC33FJ06GS101-I/SO

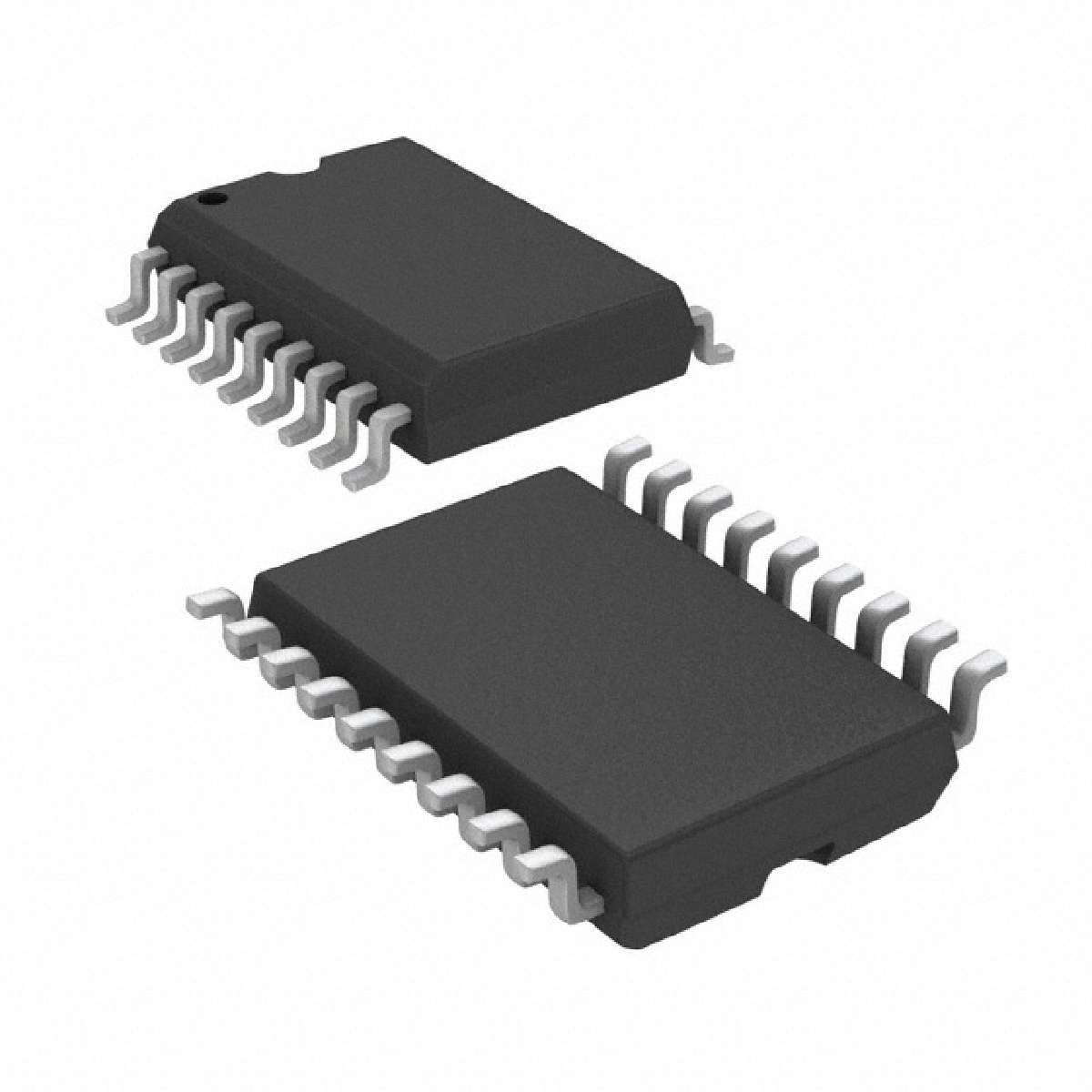

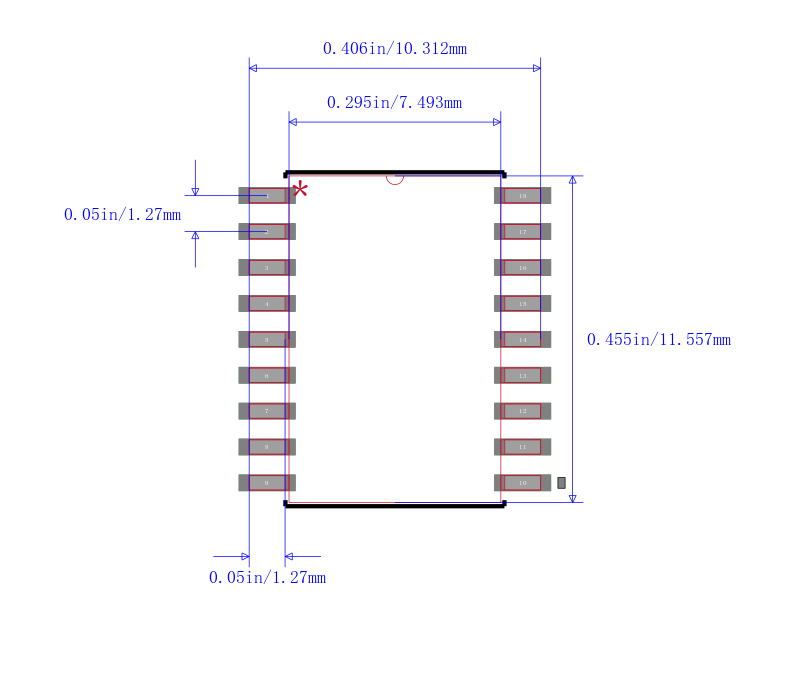

dsPIC33 系列 256 B RAM 6 kB 闪存 16位 数字信号控制器 - SOIC-18

Peripheral Features:

• Timer/Counters, up to Three 16-Bit Timers:

\- Can pair up to make one 32-bit timer

• Input Capture up to two channels:

\- Capture on up, down or both edges

\- 16-bit capture input functions

\- 4-deep FIFO on each capture

• Output Compare up to two channels:

\- Single or Dual 16-Bit Compare mode

\- 16-Bit Glitchless PWM mode

• 4-Wire SPI:

\- Framing supports I/O interface to simple codecs

\- 1-deep FIFO Buffer.

\- Supports 8-bit and 16-bit data

\- Supports all serial clock formats and sampling modes

•I2C™:

\- Supports Full Multi-Master Slave mode

\- 7-bit and 10-bit addressing

\- Bus collision detection and arbitration

\- Integrated signal conditioning

\- Slave address masking

•UART:

\- Interrupt on address bit detect

\- Interrupt on UART error

\- Wake-up on Start bit from Sleep mode

\- 4-character TX and RX FIFO buffers

\- LIN bus support

-IrDA® encoding and decoding in hardware

\- High-Speed Baud mode

\- Hardware Flow Control with CTS and RTS
