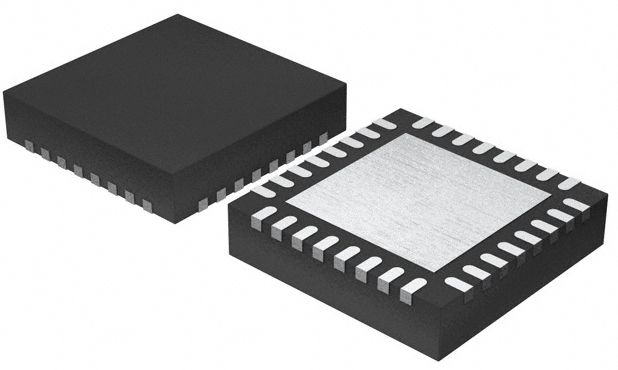

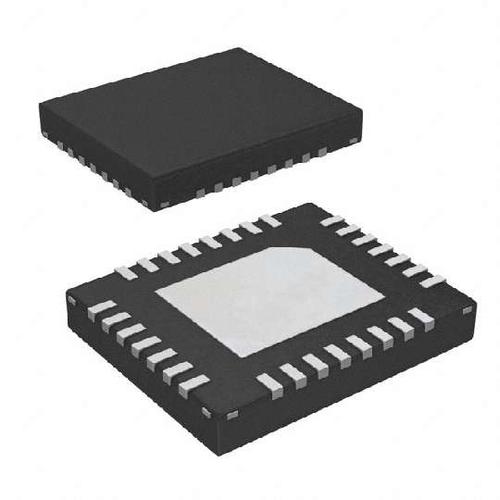

EL4342ILZA

500MHz的三倍，复用放大器 500MHz Triple, Multiplexing Amplifiers

500MHz Triple, Multiplexing Amplifiers

The EL4340, EL4342 are fixed unity gain mux amps featuring high slew rates and excellent bandwidth for video switching. These devices feature a high impedance output state HIZ that enables the outputs of multiple devices to be wired together. A power-down mode ENABLE is included to turn off un-needed circuitry in power sensitive applications.

Features

• Triple 2:1 and 4:1 multiplexers for RGB

• Internally set gain-of-1

• High speed three-state outputs HIZ

• Power-down mode ENABLE

• Latch enable EL4340

• ±5V operation

• ±870 V/µs slew rate

• 500MHz bandwidth

• Typical supply currents 10mA/ch EL4340 and 15.3mA/chEL4342

• Pb-free RoHS compliant

Applications

• HDTV/DTV analog inputs

• Video projectors

• Computer monitors

• Set-top boxes

• Security video

• Broadcast video equipment
