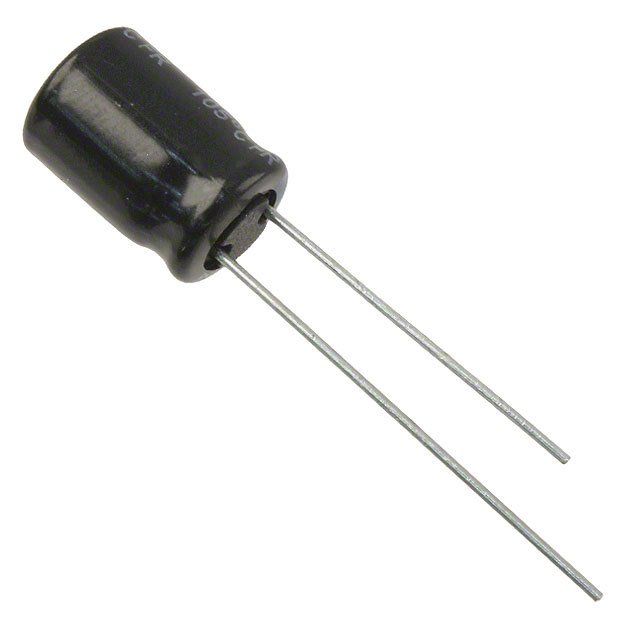

EEU-FR1V181B

PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V181B  铝电解电容, 180uF, 35V, 20%, 径向引线

180 µF 35 V 铝电解器 径向，Can - 105°C 时为 6000 小时

立创商城:
180uF ±20% 35V

得捷:
CAP ALUM 180UF 20% 35V RADIAL

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V181B  铝电解电容, 180uF, 35V, 20%, 径向引线

艾睿:
Manufactured from Panasonic, this electrolytic EEU-FR1V181B aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 63@2Min μA. This product is 11.5 mm tall with a diameter of 8 mm. Its capacitance value is 180uF. The EEU-FR1V181B aluminum electrolytic capacitor has a radial termination style.

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V181B  Electrolytic Capacitor, 180 µF, 35 V, FR Series, ± 20%, Radial Leaded, 8 mm

MASTER:
Cap Aluminum Lytic 180uF 35V 20% 8 X 11.5mm Radial 5mm 950mA 6000h 105°C Ammo

Online Components:
Cap Aluminum Lytic 180uF 35V 20% 8 X 11.5mm Radial 5mm 950mA 6000h 105°C Ammo

Electro Sonic:
Cap Aluminum Lytic 180uF 35V 20% 8 X 11.5mm Radial 5mm 950mA 6000h 105°C Ammo
