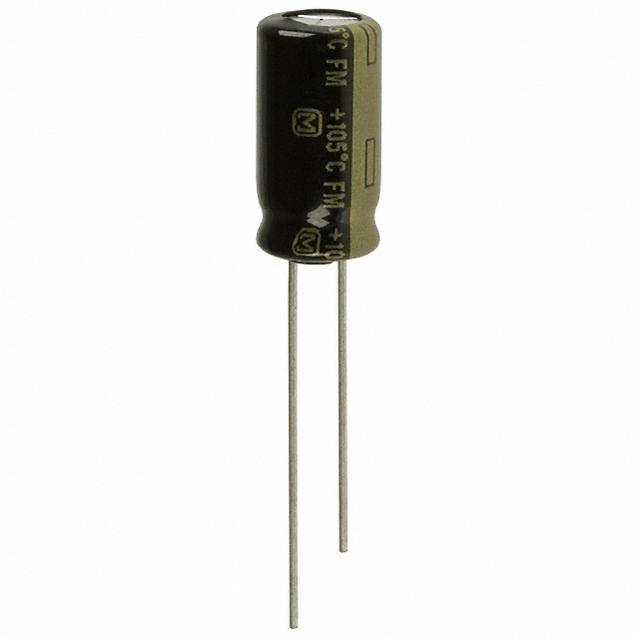

PANASONIC ELECTRONIC COMPONENTS EEU-FM1C471L 铝电解电容, FM系列, 470 µF, ± 20%, 16 V, 8 mm, 径向引线
The FM series capacitor are type A, radial leaded polarized aluminium electrolytic capacitor. The capacitance value ranges from 22µF to 6800µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- .
- High reliability
- .
- Rated voltage range of 6.3VDC to 50VDC
- .
- Tolerance of ±20%
- .
- Endurance of 2000h to 7000h at 105°C
- .
- Operating temperature range -40°C to 105°C
额定电压DC 16.0 V
电容 470 µF
容差 ±20 %
纹波电流 1240 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 3.5 mm
长度 15.0 mm
高度 15 mm
直径 8.00 mm
脚长度 17.0 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
寿命（小时） 3000h @105℃
制造应用 便携式器材, Consumer Electronics, 通用, 电源管理, Power Management, 消费电子产品, 工业, Industrial, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532220040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EEU-FM1C471L Panasonic 松下 | 当前型号 | 当前型号 |
ECA-1CM471 松下 | 类似代替 | EEU-FM1C471L和ECA-1CM471的区别 |
EEUFR1C471 松下 | 类似代替 | EEU-FM1C471L和EEUFR1C471的区别 |
ECA1CM471 松下 | 类似代替 | EEU-FM1C471L和ECA1CM471的区别 |
